Flowserve Corporation products

Overhung pump desgined to API610 requirements. Centerline Supported heavy duty design offers optimum operation under high temperature and pressure. Maximum parts interchangeability. Provided optionally with an inducer for low NPSH required application.

The Worthington DS end-suction, double volute single-stage pump with a back pullout configuration is engineered for a wide variety of industrial services. Developed in accordance with ISO 5199, this versatile foot mounted pump is well-suited for mining, water, desalination, power and general industrial applications requiring lower operating and maintenance costs. Optimized hydraulics combined with a rigid shaft design and double volute casing provide high-efficiency performance and long-term reliability that result in increased uptime with low cost of ownership.

The Flowserve DS-RO single-stage, end-suction, foot-mounted pump is engineered specifically for auxiliary applications found in reverse osmosis desalination processes. This versatile pump is well-suited for plant support services such as filtered water, low- or high-pressure feed boosting, potable water, backwash and others. Optimized hydraulics and high-alloy materials of construction, like ASTM A890 Grade 5A/6A super duplex stainless steel, provide high-efficiency performance and long-term reliability that result in increased uptime with low cost of ownership.

Flowserve DVSH-RO single-stage, high-pressure membrane feed pumps are engineered to deliver high-efficiency operation and long-term reliability in heavy-duty seawater reverse osmosis (SWRO) processes. Based on the widely used DVSH ISO 13709/API 610 (BB1) pump, the DVSH-RO pump is configured to meet the specific performance demands of desalination processes. A side-by-side nozzle configuration and optimized hydraulics provide the best hydraulic fit to maximize operating efficiency and stability. Corrosion-resistant materials ensure long-term service life without degradation. The result is uncompromising reliability over a wide flow range.

Flowserve DMX-RO high-efficiency membrane feed pumps are engineered using the latest technologies and materials to provide long-lasting, efficient operation in reverse osmosis applications. The DMX-RO pump is built for high-pressure, heavy-duty membrane feed services used typically in seawater reverse osmosis (SWRO) applications. Hydraulics are designed with advanced computational fluid dynamics (CFD) to provide best system performance and minimize operating expenses. The pump’s comprehensive hydraulic range permits precise selection to deliver best hydraulic fit, operating efficiency and stability, all of which help to extend mean time between repair (MTBR). Corrosion-resistant materials ensure long performance life without degradation.

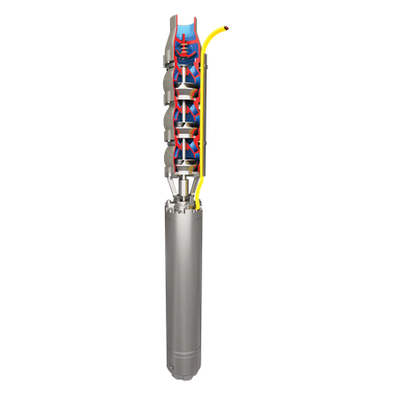

Flowserve developed the Byron Jackson H2O+ submersible pump and motor quick-delivery program because deep well submersible operators must keep the water flowing. Farmers, golf course superintendents, municipalities, industrial and mining maintenance managers depend on reliable pumping equipment for their daily processes and quick replacement when a failure occurs. This product line features 6, 8 and 10 in stainless steel pumps and Byron Jackson H₂O water-filled stainless steel motors.

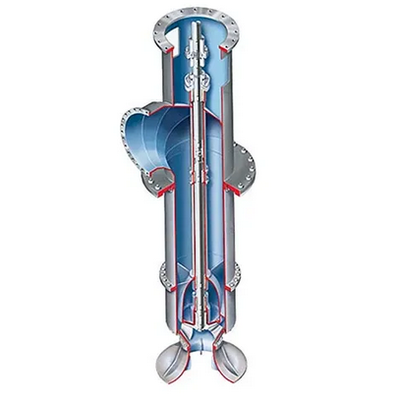

The VCT mixed-flow circulating pump is designed for continuous duty wet-pit applications requiring large capacities at relatively low pressures. Often used in power plants, desalination, cooling water, drainage, flood protection and water supply. Pullout and non-pullout designs offered.

The Scienco CT6 six-chamber diaphragm pump is designed for chemical transfer applications. It is a self-priming pump with wetted parts resistant to many agricultural and industrial chemicals. The CT6 is used primarily to dispense fluids from Bulk or Mini-Bulk tanks, Intermediate Bulk Containers (IBCs), Drums, and for similar containers. The pump can be configured with a variety of brackets, dip tubes, flow meters, fittings, hoses and valves to provide a complete pumping system.

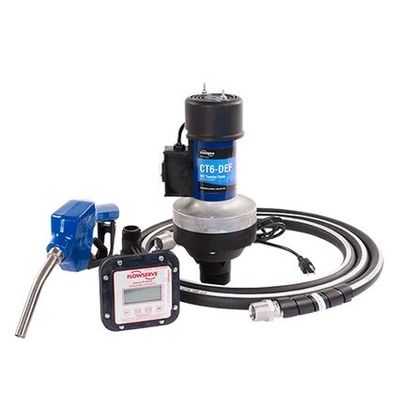

The Scienco CT6-DEF is a six-chamber diaphragm pump designed for diesel fuel applications. It is a self-priming pump with wetted parts resistant to many agricultural and industrial chemicals. The CT6-DEF is used primarily to dispense diesel fuel from Intermediate Bulk Containers (IBCs). The pump can be configured with a variety of brackets, dip tubes, flow meters, fittings, hoses and valves to provide a complete pumping system.

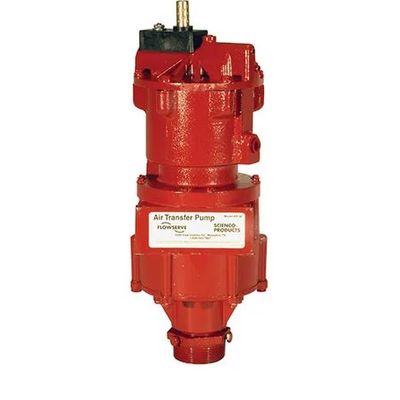

The high capacity Scienco AP-30 air piston pump is ideal for agricultural and industrial services, including herbicides, diesel fuel, gasoline and lubricating oils. It offers users a high degree of reliability, versatility and long life. The AP-30 air piston pump is ruggedly and smartly constructed. With no motor to burn out and with minimal moving parts, AP-30 is extremely reliable and requires little maintenance. Its aluminum, stainless steel and non-metallic construction resists corrosion from most agricultural and industrial chemicals. The pump is built with no metal-to-metal contact to reduce wear.
