Flowserve - Model Scienco CT6 -Diaphragm Pump

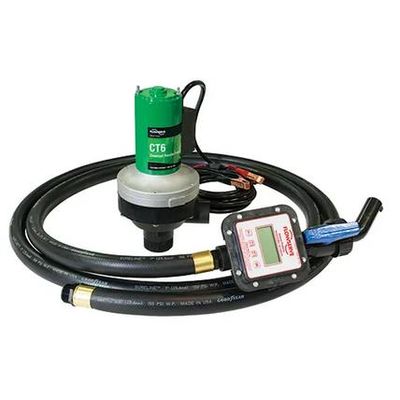

The Scienco CT6 six-chamber diaphragm pump is designed for chemical transfer applications. It is a self-priming pump with wetted parts resistant to many agricultural and industrial chemicals. The CT6 is used primarily to dispense fluids from Bulk or Mini-Bulk tanks, Intermediate Bulk Containers (IBCs), Drums, and for similar containers. The pump can be configured with a variety of brackets, dip tubes, flow meters, fittings, hoses and valves to provide a complete pumping system.
Most popular related searches
diaphragm pump
tube flow meter
electronic flow meter
self-priming pump
positive displacement pump
flow meter
chemical transfer
pump system
bulk container
industrial water
- High flow rates
- Self-priming from a dry state
- Multiple configurations for use with caged IBCs, mini bulk tanks and drums
- Lightweight and Portable
- Quiet System
- Electronic Flow Meters and Ancillaries
- 12V DC or 115V AC Motors
- AG and DEF Compatible
- Increased Operating Parameters
- Integrated Micro Matic Coupler
- NPT and BBSP threading
- Fully compliant with ISO 22241 for DEF
- Optional SPAN Cap
- Easy to serve
- ISO 22241 compatible materials
- Flows CT6 to 50 lpm (13 gpm)
- Flows CT6-HF to 68 lpm (18 gpm)
- Pressure to 2.0 bar (30 psi)
- Temperature to 66°C (150°F)
- Suction lift to 2.4 m (8 feet) for water-like fluids
Materials
- Housing: Glass-filled Polyprophylene
- Diaphragm: Santoprene
- Valve Plate: Glass-filled Polyprophylene
- Valve: EPDM, Viton, Santoprene
- O-rings: EPDM, Viton
- CES CT6 side mount for use with 275-gallon or 330-gallon caged IBCs with bottom outlet
- CT6 Caddy pump in protective frame for use with caged IBCs, mini bulk tanks or drums
- CES CT6 span cap horizontal mount for use with mini bulk tanks with 9-in opening
- CT6 vertical mount for use with drums or tank lid with 2-in opening
- CT6-MM vertical mount integrated with Micro Matic® three-pin coupler for use with drums or tanks fitted with Micro Matic three-pin container valve and suction tube
