Fluimac s.r.l. products

Double Diaphragms Pneumatic Pumps - Phoenix STANDARD Diaphragm Pumps

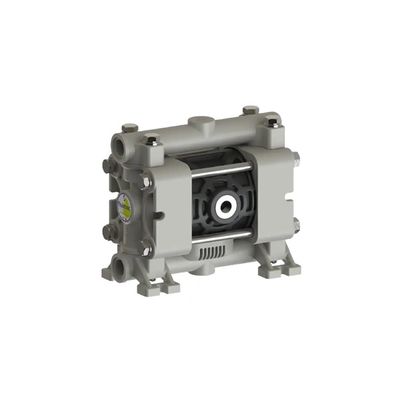

Fluimac Phoenix - Standard Diaphragm Pump

Fluid connections: 1/4” BSPP. Air connection: 1/8″ BSPP. Max. Flow rate: 4 lt/min. Max air pressure: 6 bar. Max delivery head: 60 m. Max Suction Lift Dry: 3 m. Max Solid passing: 2 mm. Noise level: 62 dB. Max Viscosity: 5.000 cps. Material: PP, PVDF+CF and POMc.

Fluimac Phoenix - Standard Diaphragm Pump

Fluid connections: 1/4” BSPP. Air connection: 1/8″ BSPP. Max. Flow rate: 7 lt/min. Max air pressure: 6 bar. Max delivery head: 60 m. Max Suction Lift Dry: 3. Max Solid passing: 2 mm. Noise level: 62 dB. Max Viscosity: 5.000 cps. Material: PP, PVDF+CF and POMc.

Double Diaphragms Pneumatic Pumps - LOTUS Diaphragm Pumps

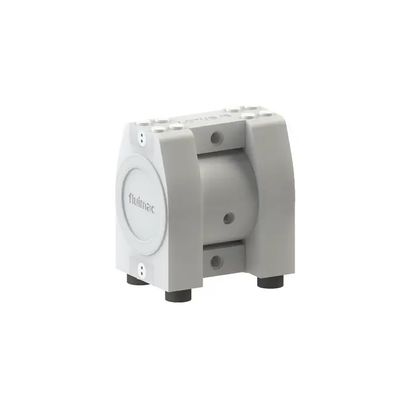

Fluimac Phoenix LOTUS - Diaphragm Pump

Fluid connections: 3/8” BSPP. Air connection: 1/4“ BSPP. Max. Flow rate: 24 lt/min. Max air pressure: 7 bar. Max delivery head: 70 m. Max Suction Lift Dry: 4 m. Max Solid passing: 3 mm. Noise level: 65 dB. Max Viscosity: 15.000 cps. Material: PTFE, PTFE+CF, PE, PE+CF e PURE PP.

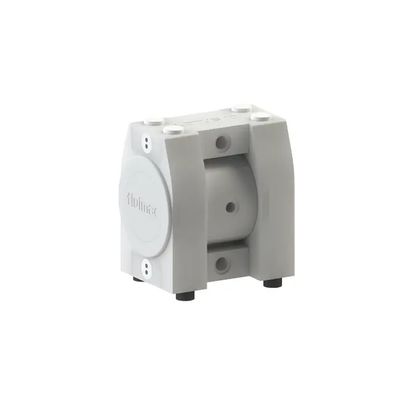

Fluimac Phoenix LOTUS - Diaphragm Pump

Fluid connections: 1/2” BSPP. Air connection: 1/4“ BSPP. Max. Flow rate: 55 lt/min. Max air pressure: 8 bar. Max delivery head: 80 m. Max Suction Lift Dry: 4 m. Max Solid passing: 3,5 mm. Noise level: 70 dB. Max Viscosity: 20.000 cps. Material: PTFE, PTFE+CF, PE, PE+CF e PURE PP.

Double Diaphragms Pneumatic Pumps - PIEZO Diaphragm Pumps

Fluimac Phoenix PIEZO - Pneumatic System

Fluid connections: Ø 12 mm. Air connection: Ø 8 mm. Max. Flow rate: 8 lt/min. Max air pressure: 6 bar. Max delivery head: 60 m. Max Suction Lift Dry: 3 m. Max Solid passing: 2 mm. Noise level: 65 dB. Max Viscosity: 5.000 cps. Material: PP, PVDF, POMc and POM+CF.

Centrifugal Pumps for Handling Fluid - Horizontal Centrifugal Pumps With Mechanical Seals DRAGON

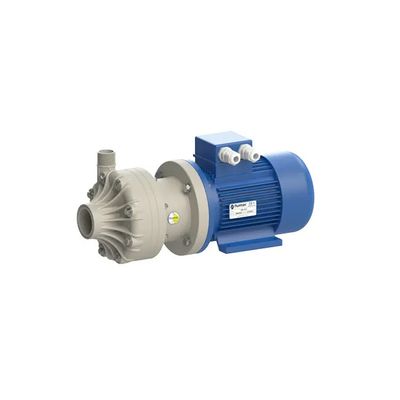

Fluimac DRAGON - Horizontal Centrifugal Pumps With Mechanical Seals

Inlet connections: 1” 1/2 F BSP. Outlet connections: 1” M BSPP. Max. Flow rate: 6 m3/h. Max. Delivery head: 8 m. Max Viscosity: 100 cps. Impeller: Semi-Opened. Motor: 0,37 kW, 0,55 kW e 0,75 kW. Material: PP e PVDF.

Fluimac DRAGON - Horizontal Centrifugal Pumps With Mechanical Seals

Inlet connections: 1” 1/2 F BSPP. Outlet connections: 1” M BSPP. Max. Flow rate: 10 m3/h. Max. Delivery head: 10 m. Max Viscosity: 150 cps. Impeller: Semi-Opened. Motor: 0,55 kW, 0,75 kW and 1,1 kW. Material: PP and PVDF.

Centrifugal Pumps for Handling Fluid - Vertical Centrifugal Pumps TYPHOON

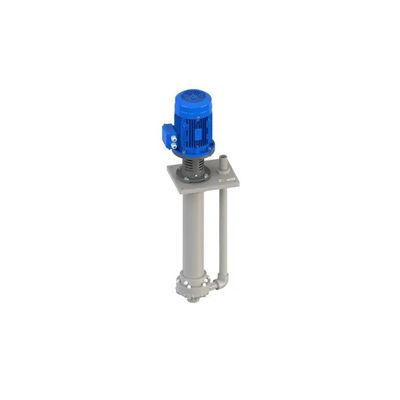

Fluimac TYPHOON - Vertical Centrifugal Pumps

Inlet connections: 1” 1/2 F BSPP. Outlet connections: 1” M BSPP. Max. Flow rate: 6 m3/h. Max. Delivery head: 8 m. Lengths available: 250mm, 500mm, 800mm and 1000mm. Max Viscosity: 100 cps. Impeller: Semi-Opened. Motor: 0,37 kW, 0,55 kW and 0,75 kW. Material: PP and PVDF.

Fluimac TYPHOON - Vertical Centrifugal Pumps

Inlet connections: 1” 1/2 F BSPP. Outlet connections: 1” M BSPP. Max. Flow rate: 10 m3/h. Max. Delivery head: 10 m. Lengths available: 250mm, 500mm, 800mm and 1000mm. Max Viscosity: 150 cps. Impeller: Semi-Opened. Motor: 0,55 kW, 0,75 kW and 1,1 kW. Material: PP and PVDF.

Centrifugal Pumps for Handling Fluid - Magnetic Drive Centrifugal Pumps Series COMPASS

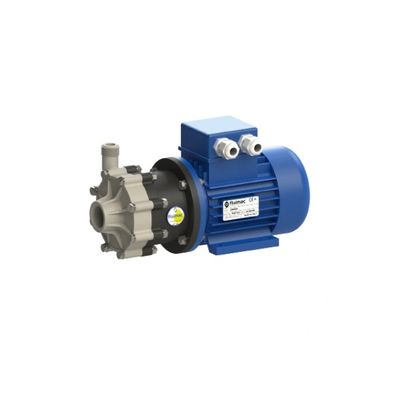

Fluimac COMPASS - Magnetic Drive Centrifugal Pumps

Inlet connections: 1” F BSPP. Outlet connections: 1/2” M BSPP. Max. Flow rate: 3,5 m3/h. Max. Delivery head: 7,5 m. Max Viscosity: 100 cps. Impeller: Semi-Opened. Motor: 0,12 kW. Material: PP and PVDF.
