Fluxinos Italia S.R.L. products

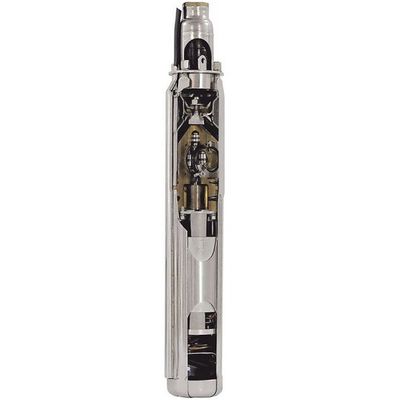

The Tetraflux is a submersible pump in stainless steel direct current, low power and high performance, powered at 48V, currents of between 2A and 6A, and adapted to prevalences of between 0 and 125 meters. It works using a patented system of opposite and equilibrated pistons activated by cams and rollers in oil bath moved by a DC motor with permanent magnets equipped with special long-lasting brushes, air-cooled, all sealed and completely isolated from the water.

SOLAFLUX is a submersible pump in stainless steel direct current, low power and high performance, it can be supplied with voltages between 24V and 48V, currents between 1A and 4A, and adapted to prevalences of between 0 and 150 meters. It works using a patented system of opposite and equilibrated pistons activated by cams and rollers in oil bath moved by a DC motor with permanent magnets equipped with special long-lasting brushes, air-cooled, all sealed and completely isolated from the water. Is normally built in three versions: with 3 mm cam. for low heads and high flow rates, with 2.6 mm cam. for medium prevalences and medium flows, with 2 mm cam. for high heads and small flows. It can be powered directly from two or four photovoltaic solar panels of common type (12V), or by means of batteries of 24V accumulators. The flow rates are between 1,600 and 9,000 liters / day.

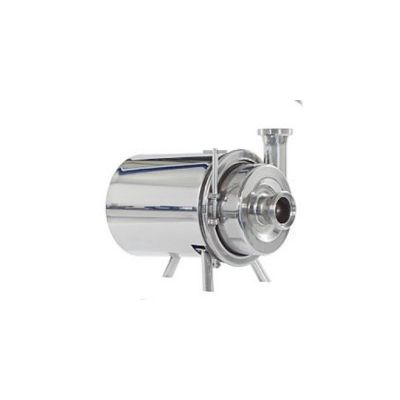

The hydraulic unit is composed of a pump body entirely in AISI 316 stainless steel obtained by cold forming. Open impellers with 2 or more fins depending on the model, also in AISI 316 stainless steel.

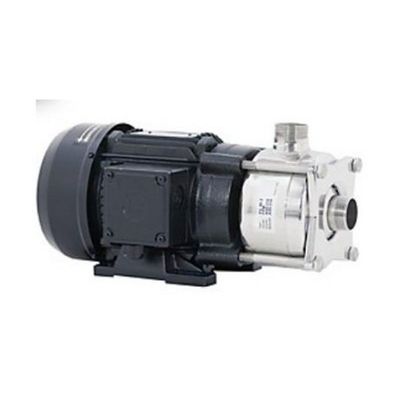

The pumps use three-phase motors with a power range of 0,5hp and 6hp. The single-phase power range from 0.3 hp and 1,5HP.

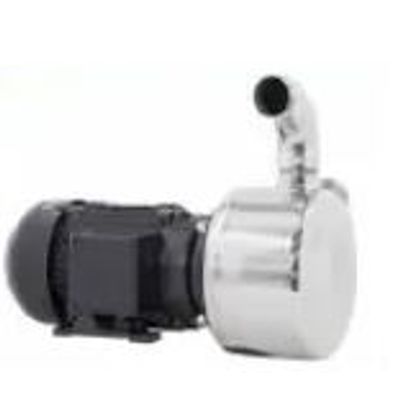

The pumps have three-phase motors with a power range from 3 Hp to 7.5 Hp. They are standard engines.

The external appearance and technical characteristics can be changed at any time and without notice.

The external appearance and technical characteristics can be changed at any time and without notice.

The external appearance and technical characteristics can be changed at any time and without notice. They are diaphragm pumps, they have no impellers or moving parts. They are operated by a manual lever.

They are ball valves entirely built in AISI 304 and 316 stainless steel with Teflon seals.

The external appearance and technical characteristics can be changed at any time and without notice.
