Focused Photonics Inc. (FPI) products

Optical Multi-Channel Process Analyzer

FPI - Model OMA - 3010 - HCl Purity and Trace Cl Analysis Systems

The OMA-3010 HCl purity and trace Cl analysis system is an industrial solution promoted by FPI especially for thechlor-alkali industry. The system adopts ultraviolet full spectrum analysis technology and chemometric algorithm, uses the OMA-3000 series industrial process analyzer and high corrosion resistant pretreatment system.

FPI - Model OMA - 3510 - SO2/H2S ratio analyzer

The OMA-3000 Series SO2/H2S ratio analyzer is a new-generation sulfur ratio instrument developed by Focused Photonics Inc (FPI). It adopts modularized and all-solid state ultraviolet process beam-splitting light spectrum measuring technique, sampling/measurement integration probe etc., and can easily solve these problems. Product Features ■ Integration probe design, in-situ measurement, quick response time ■ Unique condensation measurement technique, effectively eliminating the disturbance of sulfur vapor; ■ Measuring of many components at the same time, eliminating the disturbances of Sv and other sulfides; ■ All solid state spectrometer, with no moving parts and is reliable; ■ Easy installation and with strong environmental adaptation and little maintenance.

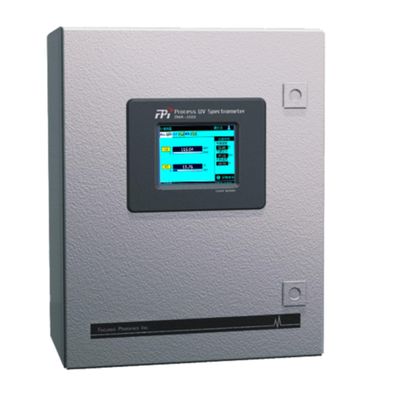

FPI - Model OMA-3000 - Online UV Fiber Spectrometer

The OMA-3000 series of online UV fiber optic spectrometers incorporates advanced technologies such as diode array detection, fiber optic transmission, and chemometric algorithms to enable real time analysis of process gas concentrations. The OMA-3000 is widely applicable in industrial processes, environmental protection, and other fields requiring real-time gas analysis. It is capable of performing online UV/visible wavelength analysis with absorption of gas concentrations such as SO, NO, NO2, Cl2, H2S and NH3, among others.
