Franke-Filter GmbH products

Oil mist and overpressure in the lubricating oil system belong to the past. Your solution for the future? The ecological Oil Mist Separators from FRANKE-Filter!

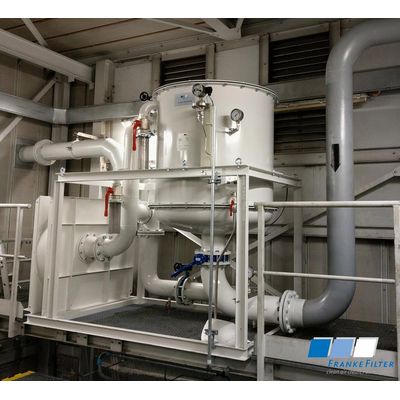

The lube oil cycle of a gas turbine is a sensitive structure that needs intensive protection from environmental influences. FRANKE-Filter has designed Oil Mist Separators for gas turbines that provide protection by extracting moisture and dirt particles from the lube oil cycle and filtering them. Eventually, the filtered oil mist is re-added to the cycle.

For hydro turbines, it is crucial that the vacuum can be individually adjusted at each bearing (turbine, guide bearing, generator) so that the oil mist can be extracted locally.

Emulsion Mist Separators are of great importance in metalworking to protect the employees, the hall and also the cooling lubricant itself. At FRANKE-Filter you will not only find Oil Mist Separators for rotary equipment, we also manufacture highly efficient Emulsion Mist Separators. These are used for CNC processing machines as well as for turning, drilling, milling and grinding.

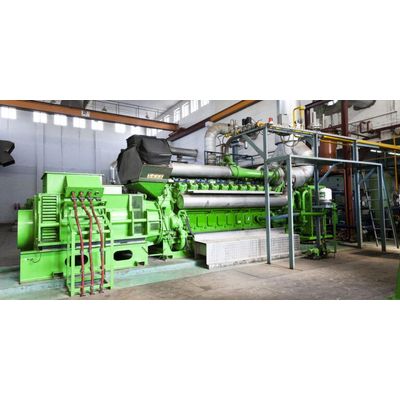

Oil Mist Eliminators for gas and diesel engines maintain a constant vacuum in the crankshaft housing. Due to fluctuations in the crankshaft housing, your Oil Mist Eliminator is equipped with a frequency converter. The pressure transducer records pressure and transmits it to the side channel vacuum pump. By alteration of the rotation speed of the side channel vacuum pump the vacuum and suction volume continuously adjust themselves.

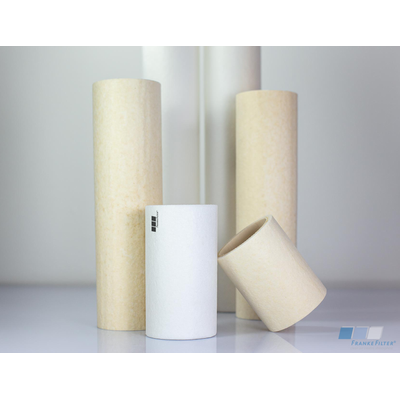

New and improved MFK-032-39.4 and MFK-674-39.4 filter elements for Oil Mist Separators are now available. Due to their new structure they are even more reliable and stable even when they are almost saturated.

In case you are searching for FLT486 filter elements (GE Part 328A7187P003), you might also want to try FRANKE-Filter microfibre filter cartridges for Oil Mist Eliminators. We performed extensive testing on own filter elements as replacements for FLT486 filter elements and achieved really good results. Our special-built MFK filter elements are 100% compatible with FLT486 filter elements.

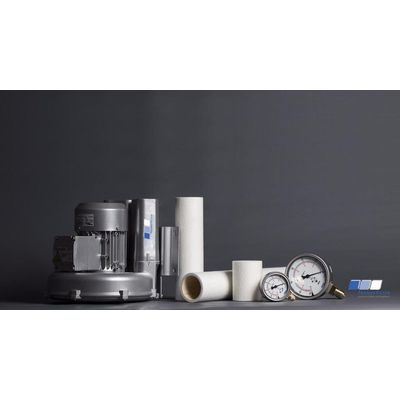

FRANKE-Filter offers you a wide range of original spare parts for your Oil Mist Eliminator. From MFK filter cartridges and o-rings to side channel vacuum pumps - get in touch now to secure your personal offer.
