Franzoi Metalmeccanica Srl products

This mobile crushing machine from Franzoi is designed for recycling of inert materials sourced primarily from demolitions. It uses a crushing mechanism comprising two counter-rotary blade shafts. This new crushing method offers notable advantages: High production rate even with earth, clay, wet, and bituminous materials, with inert materials rich in iron or wood. Low maintenance costs due to the absence of on-board operator and the low level of wear granted by the new crushing system. Desired particle size at discharge point offered by adjusting the distance between the shafts. Adjustable shaft rotation speed (2-3 rpm). Increased loading capacity provided by a suitable working surface (1.600 x 1.000 mm).

IT Can Shred: Demolition debris, Reinforced concrete, Bricks, Asphalt, Wood waste, Furniture, Pallets, Windows, Shrubs, Branches, Roots, Plastics.

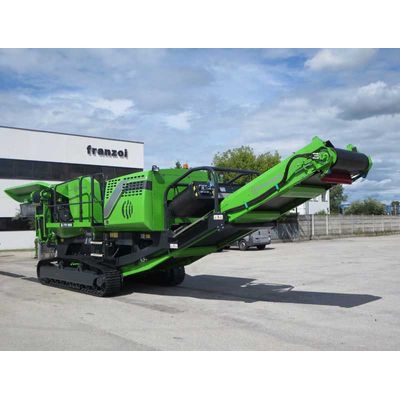

The Franzoi Metalmeccanica S.r.l. FPR1006 mobile crusher is a machine designed for the processing of stone material, rocks, minerals, and recycling of demolition rubble that, thanks to its jaw crusher unit, crushes the fed material. The crusher’s speed and rotation direction can both be adjusted, thus allowing the processing of damp, earth and clay material. The adjustable crusher opening is completely hydraulic and fitted with an innovative electro-hydraulic control system that can detect any un-crushable material and eject it without interrupting the processing cycle.

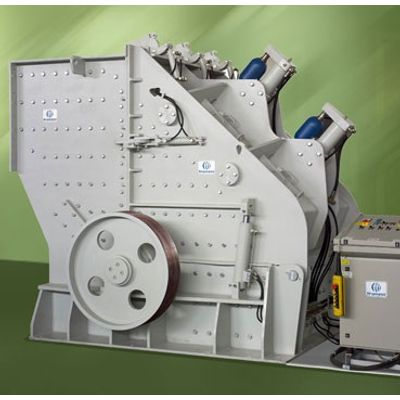

The crusher MPR1007 of Franzoi Metalmeccanica srl is a primary impact mill, designed and built for primary crushing of stones. made by adjustable mobile armors that allow, in addition to the normal functions that adjust the light between hammer and impact wall, to open and automatically reposition the impact wall in case a non-crushable body enters in the chamber. The crusher presents innovative technical solutions for the replacement of the hammers and caps, that allow the reduction of downtime required for its maintenance.

The crusher MPR1511 of Franzoi Metalmeccanica srl is a primary impact mill, designed and built for primary crushing of stones from recycling. The crushing chamber is made by adjustable mobile armors that allow, in addition to the normal functions that adjust the light between hammer and impact wall, to open and automatically reposition the impact wall in case a non-crushable body enters in the chamber, as often happen when working recycling material. The crusher presents innovative technical solutions for the replacement of the hammers and caps, that allow the reduction of downtime required for maintenance.

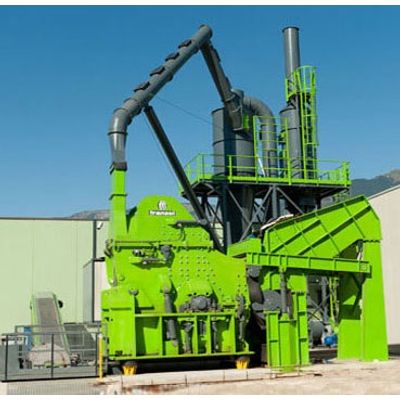

The fixed shredder TF500 by Franzoi, integrates in a single structure, a powerful shredder for ferrous materials and the engine-pumps group complete with all the accessories in its bottom. The result is a machine very simple, little cumbersome, efficient and unique in its field. The high load capacity of the hopper (8 [m ^ 3]) coupled to a shredder with an engine power of 600 hp and a considerable working area (2100 x 1500 mm) makes loading easy and permits a wide variety of workable materials: Car bodies - refrigerators, washing machines, household appliances - Plastics and tires - Pressed cars or collect scraps - Drums and boilers - Sheets metal and bulky materials.

Fixed Crusher for processing scrap metal. Accessories: External rotor disk guards. Feed rollers actuated hydraulically. Upper grid. Hydraulic mill opening. Radio remote control. Automatic greaser system.

The mobile shredding plant Piranha by Franzoi is a machine designed for the primary shredding stage of solid waste such as metal and plastic drums, tires, WEEE, bulky waste in general. The machine allows to obtain a considerable reduction in volume and the disintegration of the linked components. All supplied materials can be treated at the best cutting conditions thanks to the selection of the optimum cutting speed selectable with the joystick on the remote control. The hydraulic motor is also equipped with a dual speed range: slow for hard materials and fast for easily machinable materials, thus production can be significantly increased. The mobile plant is characterized by its innovative technology that provides high performances in all its functions: Low cost of ownership: no need of operator on board. - Dual speed range - Variable rotation speed - Low noise and vibration. High travel speeds (up to 4 km/h) - Full remote control of all functions.

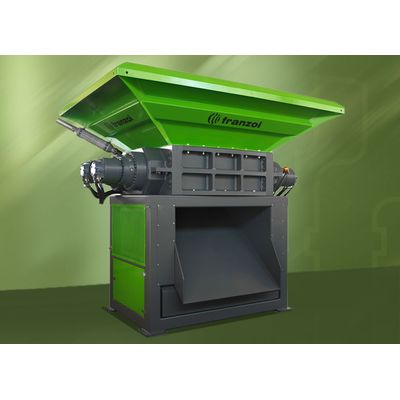

The industrial shredder TF300 is a stationary plant with interesting characteristics. The strength of this machine is its versatility. It is suitable for use in various industrial fields. It can shred: pallet, wood, plastic, bulky materials. For example it can be ideal solution like garbage how first stage of shredding. From a technical point of view the shredder is made up of a twin-shaft shredder and develops a power ranging from 200 to 300 KW. The work surface is also very wide 2 x 1,4 meters and hopper capability is very good around 9 meter cubic. The TF300 industrial shredder can be customized according to your material handling needs. For more information fill out the form below, you will be contacted by our technical department. Waste shredder, Garbage shredder, Waste wood shredder, Plastic process.

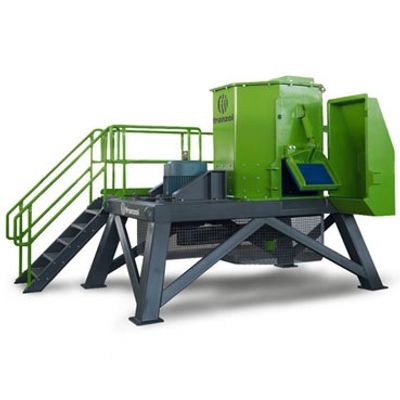

The vertical crusher series MC of Franzoi Metalmeccanica srl is a mill with a vertical axis rotor and crusher chains. This type of rotor, combined with a crushing chamber octagonal, generates in the material a motion which facilitates the auto- crushing causing a reduction of the feed size and a breakdown of the different materials connected to each other. The crushing chamber is equipped with a changeable grid which defines the calibration of the output material. The particular geometry of the crusher and its versatility allows the treatment of various materials: WEEE, tyres, cans, stones, ... For this purpose even the speed of rotation of the mill can be varied so as to optimize the crushing of different materials.
