Fronius International GmbH products

In the Laser Hybrid process, the laser beam and the arc act in the welding zone at the same time, and influence each other. The results are welcome synergy effects: highest possible speed, with the highest possible quality, stabilisation of the process, and spatter-free welding, even at maximum speed; improved gap bridgeability, less distortion and therefore less rework and shorter production times. A newly developed welding head for fully automatic applications has minimum geometrical dimensions, providing easy access to components which are difficult to weld. With the Laser Hybrid process, aluminium, steel, galvanized steel and high-grade steels up to a thickness of 4 mm can be welded.

In the past there have been a number of drawbacks associated with plasma cutting. Not least, conventional cutting processes suffer from limited mobility due to the fact that they require a supply of compressed air. The large proportion of nitrogen in the plasma jet, moreover, encouraged chemical reactions at the heated cutting surfaces and the workpiece surfaces, which could lead to the formation of pores in the event of any subsequent welding. As an innovative plasma cutting process that requires no compressed air, TransCut avoids the accompanying symptoms mentioned and also allows operation that produces fewer pollutants.

Resistance spot welding has established itself across a wide range of industries as a cost-effective method for joining steel sheets. In modern vehicle manufacturing in particular, high-strength steel sheets of varying strenghts and quality need to be joined. This type of work is too demanding for conventional spot welding. There is also a growing need for more effective joining systems for aluminium sheet. For these types of difficult applications, manufacturers often have to turn to cost-intensive mechanical joining processes, such as punch rivets or screws. An optimised resistance spot welding process for complex, alternative applications is required. DeltaSpot has successfully met this challenge.

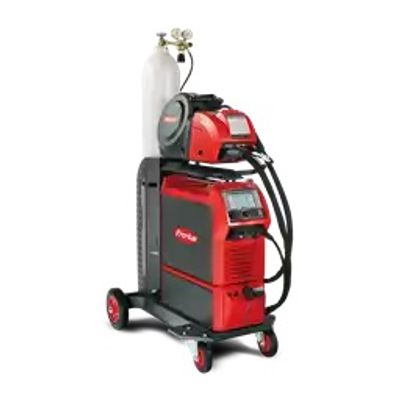

The future-proof solution: welding with the TPS/i. With the TPS/i, you are ready today for the challenges of tomorrow. The TPS/i is one of the most state-of-the-art welding systems and, with its huge power capacity of up to 600 A, it meets the highest demands for steel, stainless steel, and aluminum applications. The intelligent equipment, modular structure, and multitude of expansion options of the welding system provide the necessary flexibility and efficiency for all manner of applications. With the TPS/i, you already have the perfect solution for tomorrow’s challenges at your fingertips, so you can fully unleash your welding potential.

Greater productivity and potential savings: with the WF 25i Dual, you always have the right wire at hand, regardless of whether there are two different filler metals or wire diameters. So there’s no need to exchange wirespools, wear parts, or the welding torch. The Dual Wire Feeder ensures stable wirefeeding and is the perfect choice, especially for the manufacture of construction machinery or shipbuilding, the automotive sector, or pipeline construction without additional system or application complexity. Combined with the TPS/i, it is the ideal solution for your needs, helping you to unleash your full welding potential.

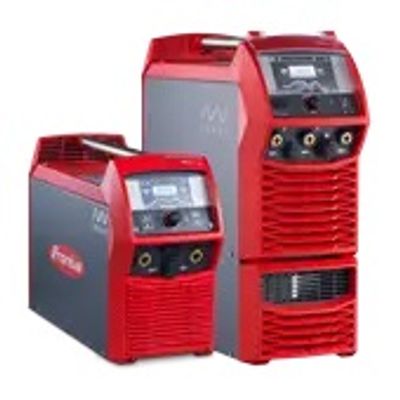

The Fronius TIG welding system that makes no compromises. Precise. Durable. Intuitive. With the iWave series, not only can you smash everyday welding tasks; you can also unleash your welding potential and make yourself future-proof. Flexible. Top quality – for every weld and every material: with its targeted heat input and improved ignition function, iWave gives you maximum control over your arc while significantly reducing ignition delays. All the operating controls on the iWave series have likewise been designed for maximum control. This makes the systems intuitive to use, leaving you free to concentrate solely on the challenges of your welding task.

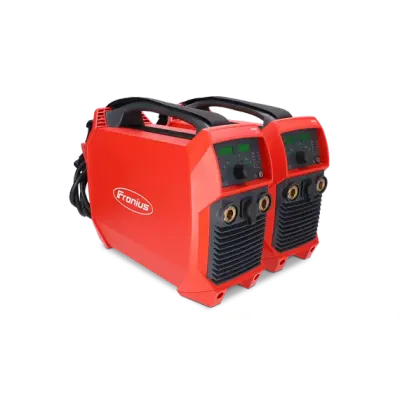

Your craftsmanship, our technology. We provide you with the right technology to allow you to concentrate fully on your TIG weld. Our compact Artis 170/210 product family offers a wide range of functions and helps you to unleash your full welding potential. Our main focus was to ensure that the mobile TIG welding machine makes the best possible use of the input voltage. This not only makes the Artis energy-efficient, but also extremely reliable and productive, which will ultimately make your welding experience more enjoyable!

The best result with every power grid. The compact Ignis product family offers the perfect weld every time, even under the most adverse conditions, in the smallest of spaces, indoors or outdoors. The Ignis 150/180 makes a stable arc a reality, even with long grid leads or voltage fluctuations. This robust MMA welding machine always provides perfect results, even with unstable grids, generator-powered operation, or over a wide operating radius. It makes the Ignis the perfect companion—especially on construction sites, for repair and maintenance work in industry and agriculture, and in any home workshop.

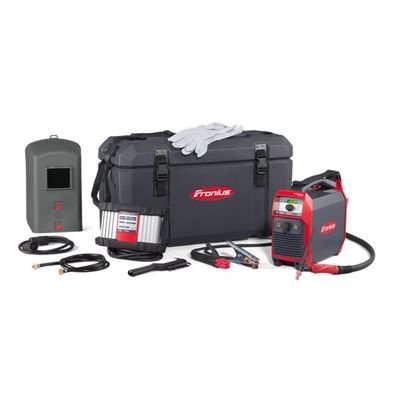

With the AccuPocket, access to mains electricity is no longer necessary. Welding tasks involving up to eight 3.25 mm or up to eighteen 2.5 mm electrodes can be carried out autonomously. A small, compact 2 kVA generator is sufficient for welding applications on a larger scale. And all without any restrictions on welding power or the quality of the arc. The very latest functional design, with dimensions reduced to a minimum, a low weight and a robust construction, make AccuPocket the perfect partner on any construction site.
