Isolation valve. Designed for drinking water according to EN 1074-1 e 2. Face to face according to EN 558 table 2 series 14. Body, bonnet and gate: ductile cast iron EN-GJS-500-7 (GGG50). Gate covering: EPDM. Stem: stainless steel AISI 420. Coating inside and outside: potable epoxy coating ≥ 250µm approved according to RAL-GZ662 (GSK).

Isolation valve. Designed for drinking water according to EN 1074-1 e 2. Face to face according to EN 558 table 2 series 15. Body, bonnet and gate: ductile cast iron EN-GJS-500-7 (GGG50). Gate covering: EPDM. Stem: stainless steel AISI 420. Coating inside and outside: potable epoxy coating ≥ 250µm approved according to RAL-GZ662 (GSK).

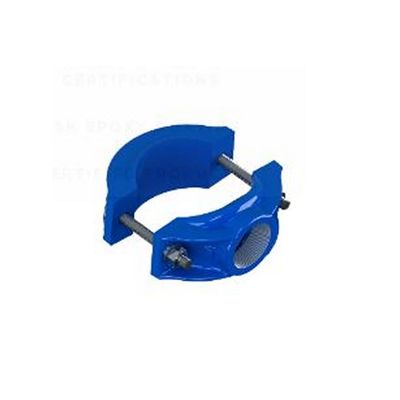

Body: ductile cast iron EN-GJS-500-7 (GGG50). Sealing: EPDM with 5 integrated orings. Bolts: A2. Coating inside and outside: potable epoxy coating ≥ 250µm according to RAL-GZ662 (GSK).

Body: ductile cast iron EN-GJS-500-7 (GGG50). Sealing: EPDM. Bolts: steel zinc plated cl 8.8. Coating inside and outside: potable epoxy coating ≥ 250µm according to RAL-GZ662 (GSK).

Isolation valve; Product certified and with CE mark, according to EN 13774. Stem sealing exchangeable under pressure. Face to face according to EN 558 table 2 series 14. Body, bonnet and gate: ductile cast iron EN-GJS-500-7 (GGG50). Gate covering: NBR. Stem: stainless steel AISI 316L. Coating inside and outside: epoxy coating ≥ 250µm according to RAL-GZ662 (GSK).

Isolation valve, Product certified and with CE mark, according to EN 13774, Stem sealing exchangeable under pressure, Face to face according to EN 558 table 2 series 15, Body, bonnet and gate: ductile cast iron EN-GJS-500-7 (GGG50), Gate covering: NBR, Stem: stainless steel AISI 316L, Coating inside and outside: epoxy coating ≥ 250µm according to RAL-GZ662 (GSK).

Isolation valve. Designed according to EN 1171. Face to face according to EN 558 table 2 series 14. Body, bonnet and gate: ductile cast iron EN-GJS-500-7 (GGG50). Gate covering: NBR. Stem: stainless steel AISI 316L. Coating inside and outside: potable epoxy coating ≥ 250µm according to RAL-GZ662 (GSK).

Isolation valve. Designed according to EN 1171. Face to face according to EN 558 table 2 series 15. Body, bonnet and gate: ductile cast iron EN-GJS-500-7 (GGG50). Gate covering: NBR. Stem: stainless steel AISI 316L. Coating inside and outside: potable epoxy coating ≥ 250µm according to RAL-GZ662 (GSK).

Unimpeded direct passage. Closing torque lower than the acceptable of standard. Gate covering - NBR/SBR, with CE marking. Stem - AISI 316 L, AISI 303, or others. Other diameters. Valves for working at temperatures over 70°C.

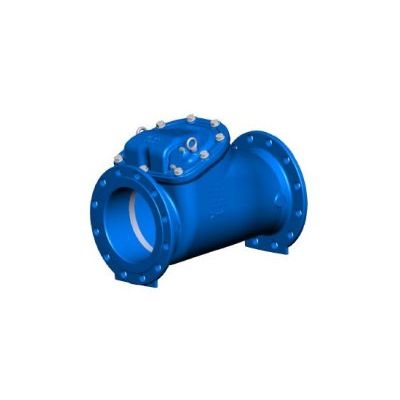

Prevent back flow.Metal/metal sealing. The water flow sense should agree with the sense of the marked body arrow. Have lifting eye starting from DN 200. The valve could be installed on the horizontal position. Shaft and seats - AISI 304 or AISI 316 L and others.By-pass. Valves for working at temperatures over 70°C.
