G2 misuratori S.r.l. products

Multi-jet water meters;. Models with measuring range r (q3/q1) ≤ 200;. Temperature classes t30 - t50 - t70 - t90;. Mid approved according to the european directive 2004/22/ce and in compliance with the norms en 14154 and oiml r49;. All models, on request, can be supplied pulsed output or preset for remote reading.

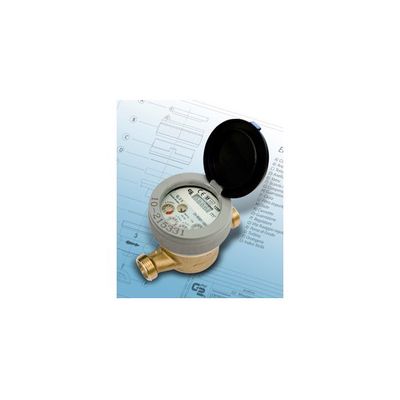

Single-jet water meters; Models with measuring range r (q3/q1) ≤ 200; Temperature classes t30 - t50 - t70 - t90; Mid approved according to the european directive 2004/22/ce and in compliance with the norms en 14154 and oiml r49; All models, on request, can be supplied pulsed output or preset for remote reading.

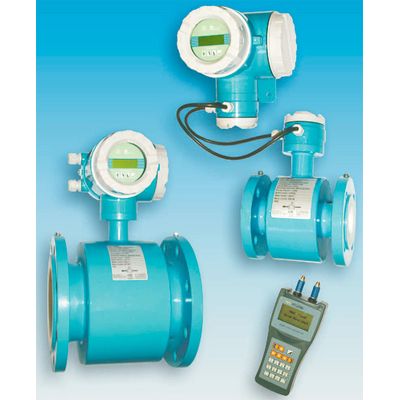

Dual beam ultrasonic technology flowmeter, MID MI001 approved, measuring range R500, temperature class T50; Electromagnetic technology flowmeter, compact version for temperature max 70 °C, remote version for temperature max 150 °C.

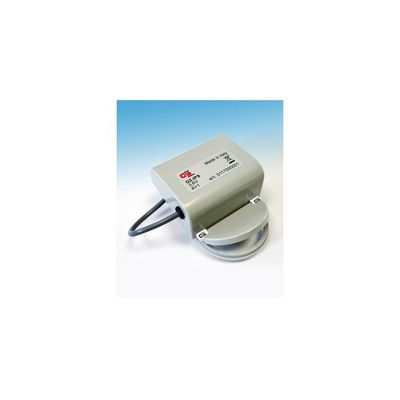

Sensors for pulse emitting, for multi and single jet meters, Woltmann meters or for water meter with pre-arrangement for impulse-emitting device: inductive sensors; reed sensors; Hall sensors.

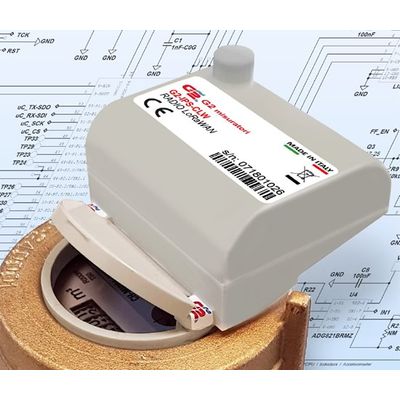

Inductive Sensor with LoRaWANTM radio module available in compact version for multiple and single jet water meters with wet dial, liquid filled counter type, fully protected dial, and super dry dial MID approved, preset for inductive sensor in K1. The measurement of the water is done by conveying the flow rate into a rotation of a star index fitted with an not magnetic metallic disk placed on the water meter dial.

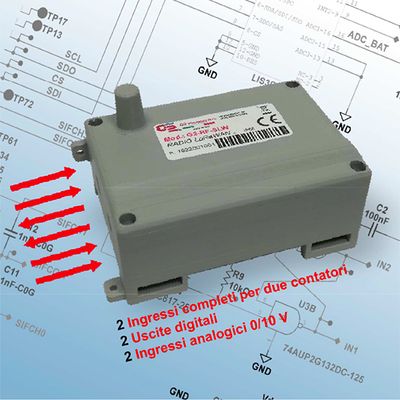

Radio Module available as remote version for connection by cable to inductive sensor G2-IPS or to Hall Sensor, or to Reed contact.

Inductive Sensor with 868 Mhz Wireless M-Bus available in compact version for multiple and single jet water meters with wet dial, liquid filled counter type, fully protected dial, and super dry dial MID approved, preset for inductive sensor in K1. The measurement of the water is done by conveying the flow rate into a rotation of a star index fitted with an amagnetic metallic disk placed on the water meter dial; the electronic device detects the number of rotations and counts the volume of water delivered.

Flow sensor suitable for heating purposes, single-jet, dry dial, for temperature up to 90 °C (120 °C optional); Mod. CSCUL DN 15/20; MI004 approved according to Directive 2004/22/CE MID, in compliance with the norms EN 1434.

Flow sensor suitable for heating purposes, multi-jet, dry dial, for temperature up to 130 °C; Mod. CACML DN 15/20/25/32/40/50; MI004 approved according to Directive 2004/22/CE MID, in compliance with the norms EN 1434.

Flow sensor suitable for heating purposes, WOLTMANN helical vane, dry dial for temperature up to 130 °C; Mod. WELC DN 50/65/80/100/125/150/200/250/300; MI004 approved according to Directive 2004/22/CE MID, in compliance with the norms EN 1434.
