GECIL Process products

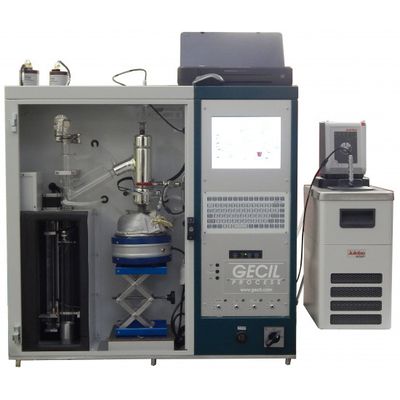

Fully automatic ASTM D1160 unit for distillation of crude oil residue or lubricating cuts, with automatic procedure from preheating to reduced pressure.  No operator intervention up to the final boiling point (FBP) and automatic return to atmospheric pressure.

Fully automatic distillation unit, in accordance with ASTM D1160 method, distills crude oil residue or lubricating cuts with automatic procedure from preheating  to reduced pressure, up to the final boiling point (FBP) and return to atmospheric pressure, without any intervention of the operator.

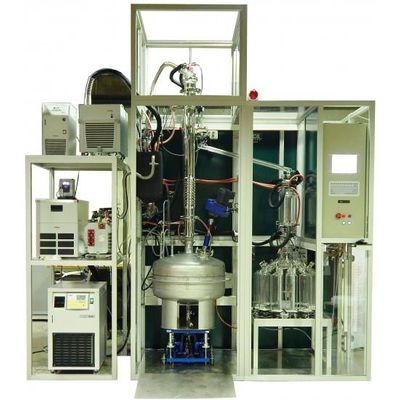

Fully automatic ASTM D2892 unit for distillation of crude oils, bio-fuels or petroleum cuts, with automatic procedure from initial heating to reduced pressure.  No operator intervention up to the final boiling point (FBP) and automatic return to atmospheric pressure.

Our fully automatic distillation unit in accordance with ASTM D2892 method, distills crude oils or cuts with automatic procedure from debutanization to reduced pressure, with operation intervention (approx. 5min) only to remove prepared fractions at the end of each 3-4 hour sequence (if more than 12 fractions need to be prepared). Unit includes a D2892 column and a stainless steel boiling flask with capacity 2L to 30L capacity. Special column and flask sizes available on request.

Our fully automatic distillation unit in accordance with ASTM D2892 method, distills crude oils or cuts with automatic procedure from debutanization to reduced pressure, with operation intervention (approx. 5min) only to remove prepared fractions at the end of each 3-4 hour sequence (if more than 12 fractions need to be prepared). Unit includes a D2892 column and a stainless steel boiling flask with capacity 50L to 200L capacity. Special column and flask sizes available on request.

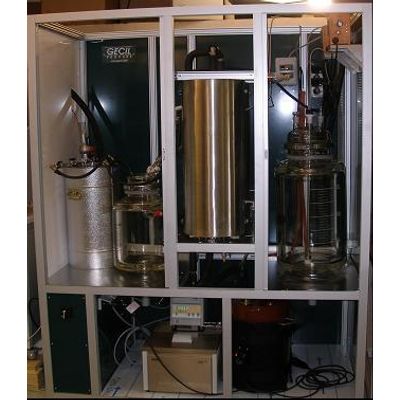

The VW6-V3 includes a heating rate controller for the heating reactor mantle, a timer, a glass reactor and viscometer tubes holder, and a top condenser cover. The utilities required are a power supply 110V or 220V and a tap water supply.

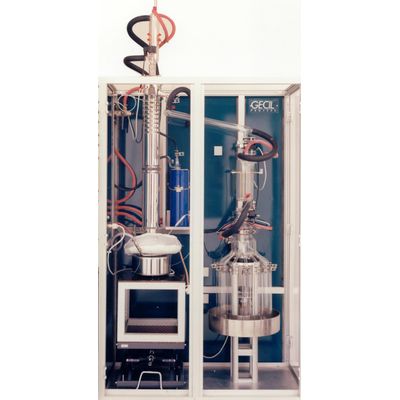

Our fully automatic batch  distillation unit  distills any kind of samples  with automatic procedure from atmo to reduced pressure, with operation intervention (approx. 5min) only to remove prepared fractions at the end of each 3-4 hour sequence (if more than 12 fractions need to be prepared). Unit includes a column in accordance with customer application  and a glass or  stainless steel boiling flask with capacity 2L to 30L capacity. Special column and flask sizes available on request.

Our fully automatic batch distillation unit distills any kind of samples with automatic procedure from atmo. to reduced pressure, with operation intervention (approx. 5min) only to remove prepared fractions at the end of each 3-4 hour sequence (if more than 12 fractions need to be prepared). Unit includes a column in accordance with customer application and a stainless steel boiling flask with capacity 50L to 200L capacity. Special column and flask sizes available on request.

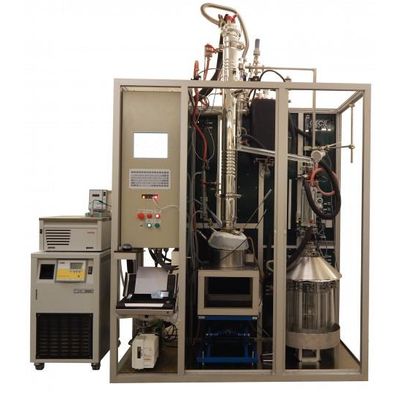

The DH87 & DH87 TWIN units are specially designed for crude evaluation laboratories to remove water from raw crude prior to performing D2892 distillation with quantification of water content and safe operation without any operator intervention.

The DH87 & DH87 TWIN units are specially designed for crude evaluation laboratories to remove water from raw crude prior to performing D2892 distillation with quantification of water content and safe operation without any operator intervention.
