Generant Inc. products

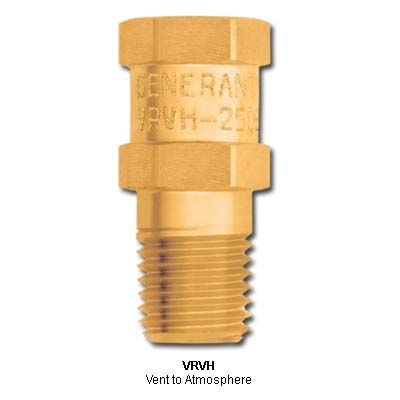

A compact, highly accurate, direct acting pressure relief valve. Factory preset to desired crack pressure and/or flow specifications. Internal adjustment provides tamper proof safety against inadvertent pressure changes. Available vent to atmosphere or inline configurations in brass, aluminum and 316 stainless steel. Valves feature a Quad ring seal which provides for extreme accuracy and repeatability with a narrow reseal band. Optional deflector cap increases flow capacity and provides for deflection of discharge.

The Generant Series APRV, Absolute Pressure Relief Valve, is a spring reference over pressure protection device for applications requiring constant set pressure independent of changes in ambient pressure (altitude). The valve was developed primarily for use with liquid helium dewars and the valve has been extensively tested to verify that the valve can withstand the extreme cold environment (FS Seals). Valves come factory preset with set pressures ranging from 15.0 to 24.0 PSIA (1.02 to 1.65 Bar). Relief pressure can be discharged to atmosphere or to a downstream connection.

A compact, highly accurate, direct acting pressure relief valve. Factory preset to desired crack pressure and/or flow specifications. Internal adjustment provides tamper proof safety against inadvertent pressure changes. Available in vent to atmosphere or inline configurations. Valves feature an encapsulated O-ring seal to prevent extrusion at higher differential pressures.

The HPRV Series Relief Valve provides accurate crack pressure with zero leakage up to 98% of nominal set pressure. When properly specified, this factory preset, tamper proof design, is ideally suited for most any liquid or gas application. Encapsulating the o-ring seal within the poppet eliminates seal extrusion and cold flow characteristics. By guiding the poppet into the body, a line of contact seal is ensured and at high crack pressure settings, the o-ring is protected by a metal-to-metal stop between the poppet and the body. High flow design, combined with narrow band interchangeable springs, minimizes system pressure rise as flow demand increases. Available in brass or stainless steel and inline or discharge to atmosphere. Valves can be supplied with a manual pull ring override.
