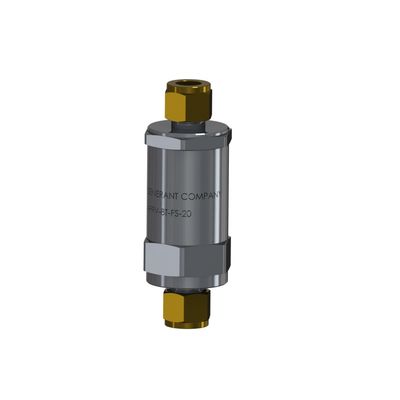

Generant - Model APRV -Absolute Pressure Relief Valve

The Generant Series APRV, Absolute Pressure Relief Valve, is a spring reference over pressure protection device for applications requiring constant set pressure independent of changes in ambient pressure (altitude). The valve was developed primarily for use with liquid helium dewars and the valve has been extensively tested to verify that the valve can withstand the extreme cold environment (FS Seals). Valves come factory preset with set pressures ranging from 15.0 to 24.0 PSIA (1.02 to 1.65 Bar). Relief pressure can be discharged to atmosphere or to a downstream connection.
