Global Detection Systems Corp. (GDS) products

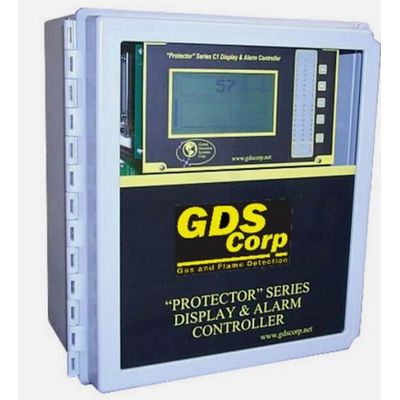

The GDS Corp. C1 Protector Controller provides simultaneous display and alarm functions for up to 16 input channels. A graphic LCD displays data as trends, bargraphs or engineering units. Three adjustable alarm levels per channel with LED indicators are provided. Four common relay outputs allow control of beacons, horns and other alarm events. The horn relay may be set for steady or pulsing operation.

The Cal 2000 provides unmatched versatility and accuracy in corrosive calibration gases. Field replaceable electro-chemical generating cells provide a calibration standard for accurately testing chlorine, chlorine dioxide, hydrogen, hydrogen cyanide, and hydrogen sulfide gas sensors.

The new 40/40I, a multi spectrum based on three IR bands (IR3), detects fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40I IR3 can detect a 1ft2 (0.1 m2) gasoline pan fire at 215 ft (65m) in less than 5 seconds.

The new GASMAX CX Gas Monitor features a stunning full color display and advanced networking features for next generation gas detection applications. Designed especially for situations where gas readings need to be digitally transmitted across networks, the GASMAX CX features standard 10/100 Ethernet and optional dual MODBUS ports with data rates to 115 kbps in addition to traditional dual 4-20mA analog outputs. The high performance microprocessor hosts a MODBUS/TCP database and integrated web server that allows remote users to monitor gas levels or make configuration changes in real time via any connected personal computer, smart phone or tablet device.

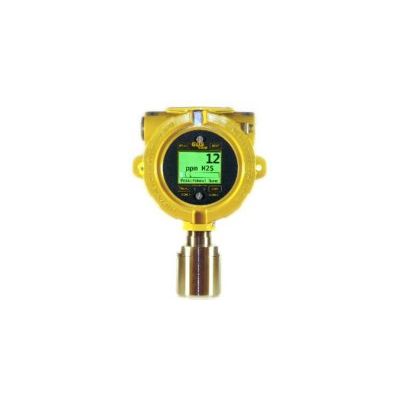

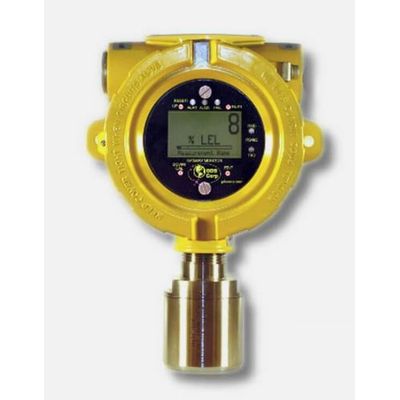

The GASMAX / EC single channel Toxic / Oxygen gas monitor delivers the latest in loop-powered gas detection technology, reliability and ease of use. The GASMAX / EC is CSA certified for use in Div 1 & Div 2 explosion proof installations and intrinsically safe installations with IS barrier.

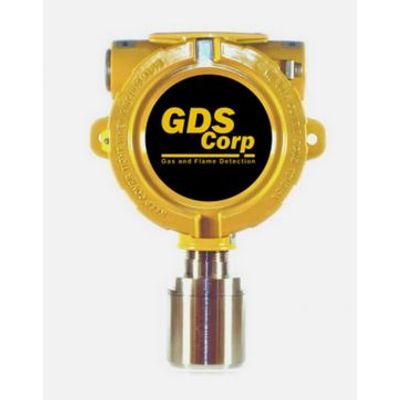

The GDS-48 Remote Sensor accepts catalytic bead combustible sensors, SmartIR infrared combustible sensors, and Photoionization VOC sensors and can be used to detect combustible gas, carbon dioxide and volatile organic compounds such as benzene or toluene.

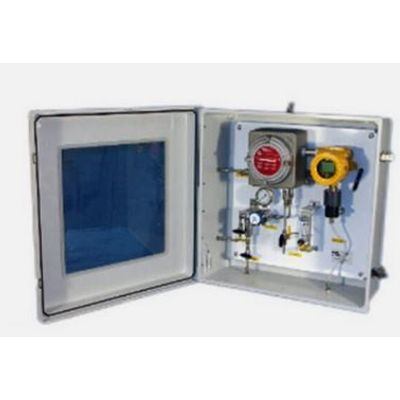

The GDS-68XP Odorant Monitor directly measures mercaptan and tetrahydrothiophene-based odorants in a stream of natural gas. By alternatively applying sample gas and clean purge air to the sensor, the GDS-68SXP delivers extended sensor life and significantly reduces the amount of sample gas released to the atmosphere.

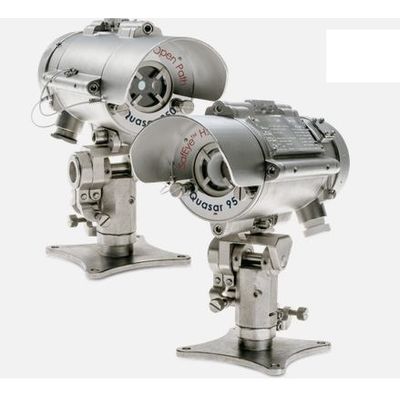

The Spectrex SafEye Quasar 900 is an open path detection system which provides continuous monitoring for combustible hydrocarbon gases. It employs “spectral fingerprint” analysis of the atmosphere using the Differential Optical Absorption Spectroscopy (DOAS) technique.

The GDS-68XP Process Gas Monitor for Low Oxygen Applications uses highly reliable and low cost electrochemical sensors to directly measure hydrogen sulfide, mercaptans and other gases in a stream of 100% natural gas. The microprocessor-controlled sequencing system periodically samples the gas stream and stores the result while bathing the sensor is clean air. The GDS-68XP Process Monitor is an ideal alternative to expensive analyzers or once-a-day measurements using pull-tube technology.

Welcome to GDS Corp. For years, we have led the way in providing gas and flame detectors for the industrial and commercial sectors. Reliability, safety, ease of use and cost effectiveness are our top priorities in all we do. Further, we use nothing less than the most advanced technologies and trusted methods.
