GN SOLIDS CONTROL products

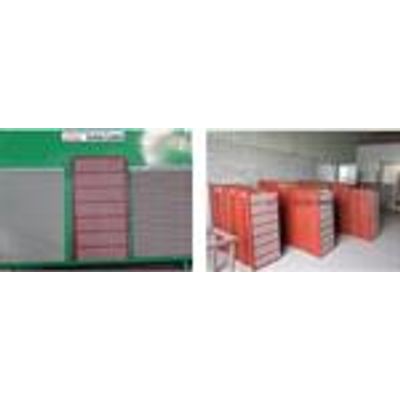

Shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. GN Solids Control can design double shakers and triplicate shakerson single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation, GN provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker. GNZS linear motion shale shaker absorbed advanced tech at home and abroad ,and integrated GN own design. GN complete series shale shaker can meet customers’ variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.

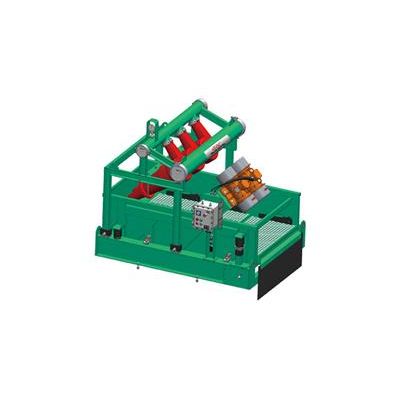

Hydrocyclone desander manufacturer,oilfield desander with good cones,buy solids control drilling mud fluids desander from China supplier for sale.

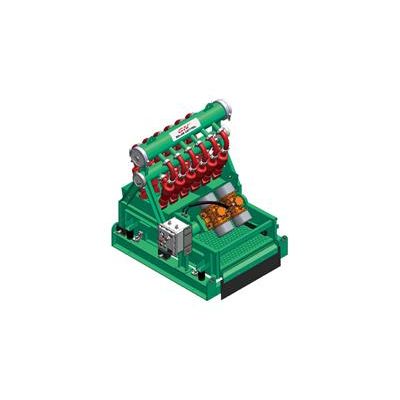

GN desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter, they are divided into Desander and Desilter. Usually the cone diameter is less than 6″is called Desilter, and used as the third-control equipment in drilling operation. We commonly used 5 "and 4" cone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cone into Desilter.GN Desilter works very well with Solids control system other equipments.

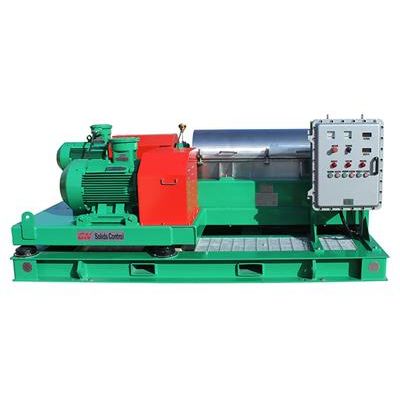

GN Decanter Centrifuge is designed for the drilling mud solids control and oilfield waste management.GN VFD drive decanter centrifuge with variable speed allows drilling contracor or mud service company to do the barite recovery, fine/ ultra fine solids separation,dewatering centrifuge.GN have the decanter centrifuge from 9 inch bowl to 22 inch bowl available for different applications.GN decanter centrifuge bowl length and diameter ration is over 3, this gives the best result for the drilling fluids cleaning.

ZCQ series Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, at the same time vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification system. The vaccum degasser design of the structure is scientific and rational. So we are able to achieve an effective gas-liquid separation, filter out impurities and to ensure that the exhaust pipe is always smooth.

ZYQ series Mud gas separator(Poor Boy Degasser) is professional equipment to treat the gas invade mud. When the drilling mud result gas invade, the proportion of its weight and viscosity have a greater deviation not to meet the requirements of drilling. The serious situation is that would cause Chung well, and even blowout accident occurred, if not to treat it timely. ZYQ series Mud gas Separator combined with the Electric Ignition Device can be used to ensure the drilling process smooth. It is devided into the normal pressure Mud gas separator and pressure auto-control Mud gas separator, according to the pressure.Mud gas Separator is your best choice to prevent drilling mud invasion.

GNSB Series Centrifugal pump is used for transferring slurry or mud or water. It can be used as feeding pump for desander, desilter, or used as mixing pump for Jet Mud Mixer. Also it can be used as trip pump, and supercharging pump for rig mud pump. All GN model centrifugal pump use tungsten carbide mechanical seal, with famous brand Bearing. And spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily. Open impeller design that lowers axial thrust loads, and make it easier for installation, repair and maintenance.
