Guide Valve Limited products
Guide Valve - Model VCI Series 11F - Instrument Isolation Valves
Instrument Isolation Valves Sizes: 2” x 1” x 2” (Other sizes are available). Pressures: ANSI Class 300 & 600 End Configurations: RF Flange to B16.5, RTJ, and FF Flange.
Guide Valve - Model F200R Series - Floating Recessed Ball Valves
Floating Recessed Ball Valves Design: API 6D & ASME B16.5. Sizes: 1/2” – 8” Full Port. Pressures: ANSI Class 150 & 300.
Guide Valve - Cryogenic Ball Valves
Cryogenic Ball Valves Design: API 6D & CSA Z245.15-17. Sizes: 2” – 36” Full & Reduced Port. Materials: Forged Stainless Steel. Pressures: ANSI Class 150 – 2500.
Guide Valve - Model API 6A - Ball Valves
Ball Valves Design: API 6A. Sizes: 1 13/16” – 11” Full & Reduced Port. Pressures: 2,000 – 10,000 PSI. Ends: RTJ, BW, and Hub.
Fire Safe Certified: API 6FA. NACE MR0175 SOUR.
Guide Valve - Welded Body Trunnion Mounted Ball Valves
Welded Body Trunnion Mounted Ball Valves Sizes: 2″- 36″ Full & Reduced Bore. Pressures: ANSI Class 150 – 2500. Materials: Forged Carbon Steel / Stainless Steel / Exotic Alloys. Ends: RF, RTJ, BW ( Pupping ). Fire Safe Certified: API 607 and/or API 6FA. Fugitive Emission Certified.
Guide Valve - Soft Seated Trunnion Mounted Ball Valves
Soft Seated Trunnion Mounted Ball Valves Design: API 6D & CSA Z245.15. Sizes: 2″- 48″ Full & Reduced Bore. Pressures: ANSI Class 150 – 2500. Materials: Forged Carbon Steel / Stainless Steel / Exotic Alloys. Ends: RF, RTJ, BW ( Pupping ). Fire Safe Certified: API 607 and/or API 6FA. SIL 3 Rated. Fugitive Emission Certified. NACE.
Guide Valve - Metal Seated Trunnion Mounted Ball Valves
Metal Seated Trunnion Mounted Ball Valves Design: API 6D & CSA Z245.15. Sizes: 2″- 48″ Full & Reduced Bore. Pressures: ANSI Class 150 – 2500. Materials: Forged Carbon Steel / Stainless Steel / Exotic Alloys. Ends: RF, RTJ, BW. Fire Safe Certified: API 607 and/or API 6FA. SIL 3 Certified. Fugitive Emission Certified. NACE MR0175 SOUR.
Guide Valve - Severe Service Trunnion Mounted Ball Valves
Severe Service Trunnion Mounted Ball Valves Design: API 6D & CSA Z245.15. Sizes: 2″- 48″ Full & Reduced Bore. Pressures: ANSI Class 150 – 2500. Materials: Forged Carbon Steel / Stainless Steel / Exotic Alloys. Ends: RF, RTJ, BW. Fire Safe Certified: API 607 and/or API 6FA. SIL 3 Certified. Fugitive Emission Certified. NACE MR0175 SOUR.
Guide Valve - Model CSA/FM VCI - Floating Ball Valves
Floating Ball Valves Basic Design: ASME B16.34. Sizes: 1/2″-8″ Full Bore & Regular Bore. Pressures: ANSI Class 150-300. Materials: Ductile Iron, WCB, LCB, CF8M & Alloy 20. Ends: RF, NPT, SW, BW. Fire Safe Certified: API 607 4th Edition. SIL Rated.

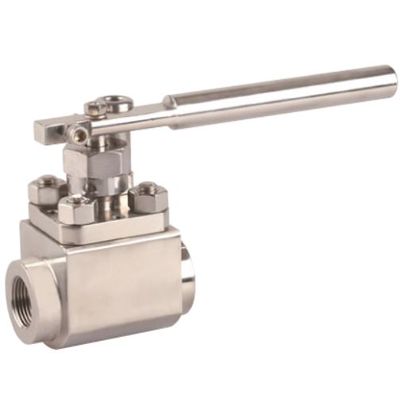

Guide Valve - Metal to Metal Guide Valve
Metal to Metal Guide Valve Basic Design: ASME B16.34. Sizes: 1/4″-2″ Full Bore & Regular Bore. Pressures: ANSI Class 150-900. Materials: Carbon Steel, Stainless Steel & Exotic Alloys. Ends: RF, NPT, SW, BW, RTJ. Fire Safe Certified: API 607 4th Edition. SIL 3 Certified. NACE.
