H2scan Corporation products

The HY-GUARD hydrogen monitoring system tackles critical safety issues for standby power battery setups by introducing the industry’s first hydrogen sensor specifically designed for most battery applications.

The HY-ALERTA 5320 Hydrogen Area Monitor brings proprietary technology for enhanced safety in environments where hydrogen leaks can prove hazardous. A compact form factor and multiple mounting options make the HY-ALERTA 5320 easy to install on any surface, wall or ceiling for rapid, accurate hydrogen detection in any facility producing, storing or utilizing hydrogen. Hydrogen-based process lines, gas blending operations, energy storage, fuel cell/electrolyzer facilities, data centers and battery rooms can realize real-time, continuous hydrogen monitoring with an intrinsically safe product with a 10-year sensor warranty.

H2scan’s HY-ALERTA 5020/21 solid-state area hydrogen monitor is a reliable, hydrogen gas detector for real-time monitoring of battery rooms that avoids false positives from other gasses. The auto-calibrating technology allows data centers, utilities, telecommunications, and energy storage systems end users to deploy it maintenance-free, with no calibration or board replacements needed throughout the life of the unit.

H2scan’s 2620 Explosion Proof Area Hydrogen Monitor provides hydrogen-specific leak detection and measurement for hydrogen concentrations as low as 4000 ppm and can be scaled to any concentration up to 5% hydrogen by volume, a range representing 10% to 125% of hydrogen’s low flammability limit. The monitor is designed for either ceiling or wall mount. H2scan’s hydrogen-specific sensor technology has no cross sensitivity to other combustible gases, thus eliminating false positive alarms and ensuring safety system reliability.

The intrinsically safe HY-OPTIMA 5330 Analyzer family brings unparalleled reliability and durability to hydrogen in-line monitoring for diverse applications within the industrial processing sector, from chemical facilities and refineries to the burgeoning green hydrogen economy. The unit is built on H2scan’s patented, solid-state hydrogen sensing technology, the only hydrogen analyzer on the market that can provide at least 10 years of auto-calibration operation. Easy installation for stand-alone hydrogen measurement or as the hydrogen monitoring component within existing OEM devices.fety system reliability.

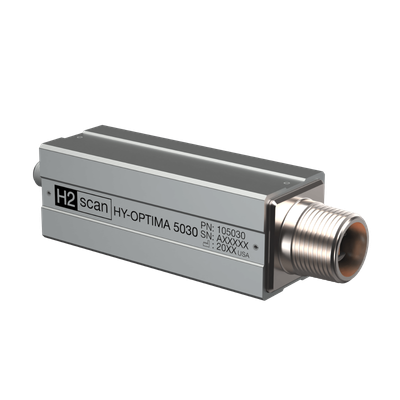

H2scan’s HY-OPTIMA 5000 Series analyzers utilizes H2scan’s Gen 5 technology to provide the most accurate, tolerant, and affordable hydrogen process gas measurement solution for industrial markets. The general purpose-rated analyzer uses a solid-state, non-consumable sensor for direct hydrogen measurement in process gas streams, with no cross sensitivity to other gases. Auto-calibration ensures the measurement stays within spec, even in dynamic conditions. Communication with the unit is via serial communication using Modbus RTU over RS485.

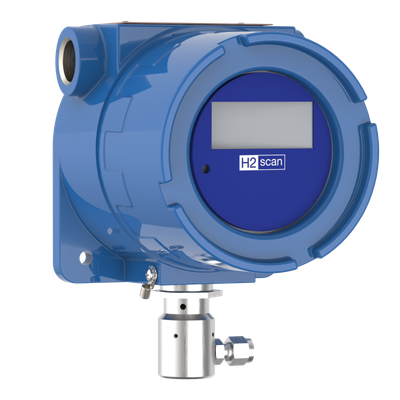

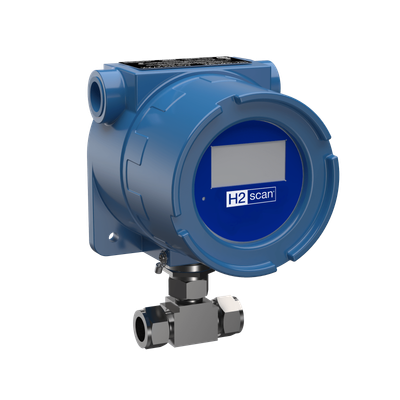

H2scan’s HY-OPTIMA 2700 series in-line, real time hydrogen-specific process analyzers are designed for ease of use, interface flexibility and true process control. The HY-OPTIMA 2700 series is an explosion proof device that incorporates our patented solid-state sensor and is configured to operate in background gas streams with up to 95% relative humidity and temperatures up to 60ºC. The HY-OPTIMA 2700 series is ideal for process gas applications where real time continuous measurements of hydrogen can increase process plant efficiencies, improve diagnostics and enhance maintenance management translating into higher profitability.

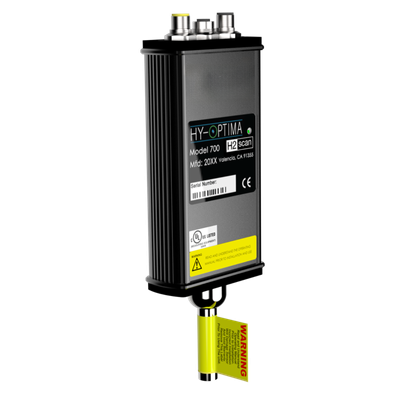

H2scan’s HY-OPTIMA 700B series in-line, real time hydrogen-specific process analyzers are designed for ease of use, interface flexibility and true process control. The HY-OPTIMA 700B series is a solid-state sensor that is configured to operate in process gas streams with temperatures up to 60ºC. The HY-OPTIMA 700B series is ideal for hydrogen production and petrochemical applications where real-time measurements can enhance process plant efficiencies, diagnostics and maintenance management. The HY-OPTIMA^® 700B Series inline hydrogen process analyzer is also designed for gas streams where real-time, hydrogen-specific measurements can enhance process plant efficiencies, improve yields, and reduce maintenance costs.

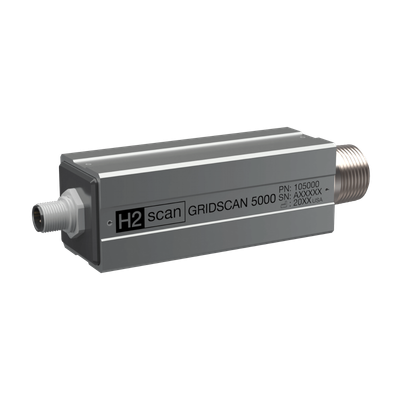

The H2scan GRIDSCAN 5000 Hydrogen Sensor pairs H2scans proprietary integrated circuit with the company’s field-proven solid-state hydrogen sensor. This stand-alone sensor system has been designed to provide precision hydrogen measurement for turnkey solution for utilities and transformer and monitoring OEMs. No calibrations or maintenance is needed for up to 10 years, and the GRIDSCAN 5000 offers great value per dollar that is very disruptive in the market. H2scan is the only company in the industry that can state retail sales of over 15,000 sensor systems worldwide with no after sale calibrations performed since 2012.

Protect Transformers with All-In-One GRIDSCAN 6000: Hydrogen, Moisture, Temperature and Pressure Measurement. H2scan’s GRIDSCAN 6000 breaks new ground in transformer monitoring, being the first in the market that combines four critical measurements; hydrogen, the first fault gas, moisture, pressure and temperature. The GRIDSCAN 6000 delivers continuous, real-time data, alerting asset managers to abnormal transformer conditions that may lead to catastrophic events. It delivers more capability than competitive monitors but at half the price.
