Harvest Electronics products

The Harvest ITU G2 (Industrial Telemetry Unit - Generation 2) is an ultra low-powered data logger with a built in modem (cellular or satellite), a range of inputs, and is the core of most Harvest solutions. All data is visible either publicly or privately on the Harvest Live Data portal. The ITU is the RTU in the Harvest SCADA system.

The Harvest ITU Micro is an ultra low powered data logger with a built in cellular phone modem, designed to provide remote monitoring and alerts in a range of low-cost standalone packages. All data is viewable via our web app for smartphones and the live data portal.

The SDI-12 Sensor Reader is a new device capable of reading soil water content from all Acclima SDI-12 moisture sensors (i.e., TDT and TDR sensors). The reader obtains data from the connected sensor, displays the data on the LCD screen, and records and displays waveform readings from compatible sensors. The SDI-12 Sensor Reader can store multiple readings on the kit’s included 32- gigabyte thumb drive, which has both micro- and standard USB connectors.

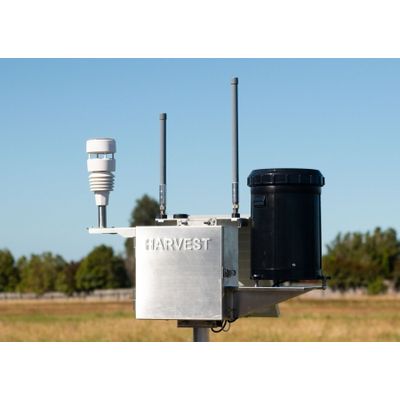

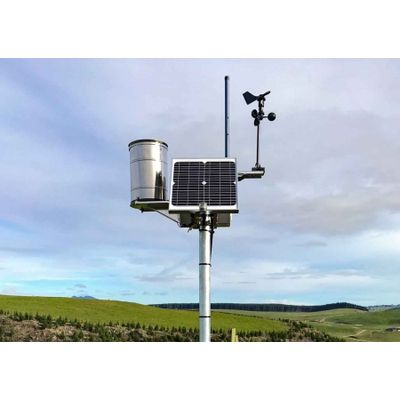

The Extended Long Range Remote (XLR) is a solar powered device that has inputs for various monitoring options and uses UHF radio to communicate with an ITU G2 base station. It has two relays to control pumps etc and could be configured as a weather station.

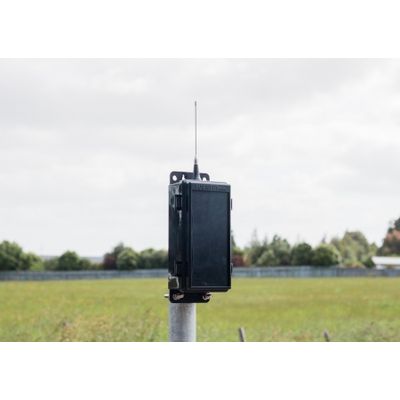

The Long Range Remote (LRR) Version 3 is a solar powered device that has a range of inputs for various monitoring options and uses UHF radio to communicate with an ITU G2 base station.

The Short Range Remote (SRR) Version 3 has inputs for temperature sensors and a digital input for flowmeter pulse or other digital signals. It has a UHF radio to communicate with an ITU G2 base station. The SRR is often used to create a network of wireless temperature sensors for frost alarms. It is powered by two D cells which last five years.

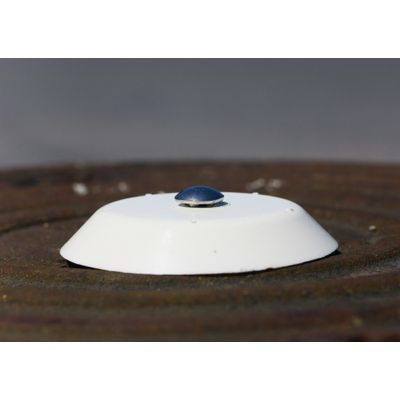

Tough antenna designed for use on manhole lids even in heavy vehicle traffic locations. This antenna was initially designed for use with sewer and overflow monitoring units - sites where the telemetry is underground, and often covered with a steel manhole lid where you need an easy to install but effective above ground antenna. After several years experimenting and testing the Harvest team came up with the Manhole Antenna. They are sold worldwide and are the easiest to install manhole antennas. They have found other applications such as on the top of roadside cabinets where the customer required extremely vandal resistant antennas.

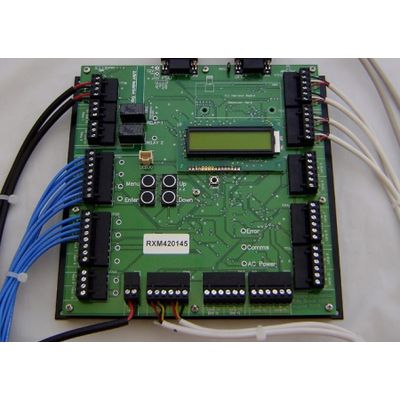

The Harvest Railway Level Crossing Monitor (RXM) was developed for KiwiRail and is used to monitor equipment at level crossings around NZ to provide urgent and maintenance scheduling alerts.

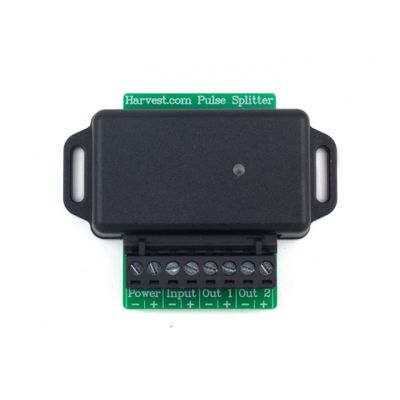

The Harvest Pulse Meter Splitter splits the pulses from a single flow meter to provide two isolated pulse outputs.
