Harvest - Model LRR3 -Long Range Remote

FromHarvest Electronics

SHARE

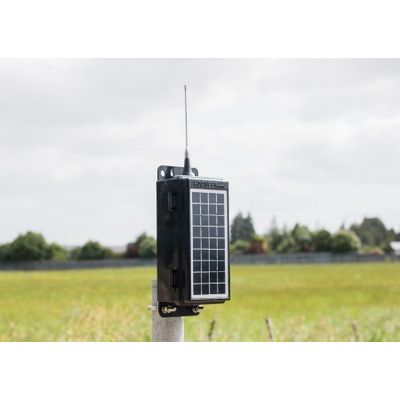

The Long Range Remote (LRR) Version 3 is a solar powered device that has a range of inputs for various monitoring options and uses UHF radio to communicate with an ITU G2 base station.

Most popular related searches

barometric pressure sensor

barometric pressure

monitor water meter

pressure sensor

moisture sensor

machine monitoring

Range of input types for sensors
Typical range of 2km
Solar or mains powered with backup battery
Weatherproof enclosure
Built in OLED display for setup and diagnostics
Mounts on pipe, wooden post or wall

At pump shed for monitoring of water meter and pump fault or run signal and well depth
At wind machine to monitor air temp, wind machine on/off and battery voltage
Underneath pivot irrigator with two soil moisture sensors buried at 100mm and 300mm depths for multi-level readings

Two analog inputs with ranges of 2V, 10V, 40V, or 4-20mA
Two digital inputs with counting capability
SDI-12 data input
One configurable excitation output with programmable voltage up to 15V
One Dallas 1-wire bus input for Harvest temp, humidity and barometric pressure sensors
One minute reporting to ITU
All settings can be remotely programmed by the Harvest Technical Support Centre
