Heat-Timer Corporation products

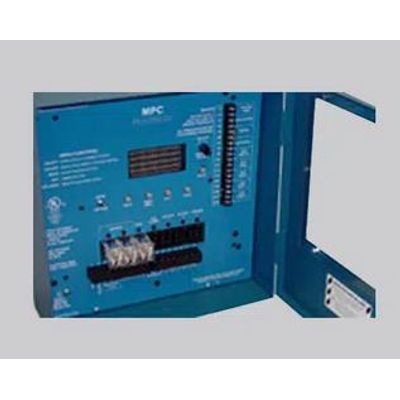

The MPC Platinum control Series is designed to operate a steam boiler or a steam valve to provide steam outdoor reset in single-pipe and two-pipe steam heating systems. Utilizing the steam cycle concept and the outdoor temperature, the control varies the duration of the steam supply to the building in a cycle based on the outdoor temperature. Each of these options has a set of pre-configured, but adjustable settings to meet the specific needs of each building. The MPC Platinum will reduce fuel costs while maintaining a more comfortable space temperature.

The SRC Platinum is a vacuum steam outdoor reset control for sub-atmosphere steam systems. The SRC Platinum will start/stop the vacuum pump and boiler, and modulate the steam motorized valve to vary (cycle) the duration of seam flow into a building’s radiation in accordance with changes in outside temperature. The colder it is outside, the more steam that is allowed to enter the buildings radiation.

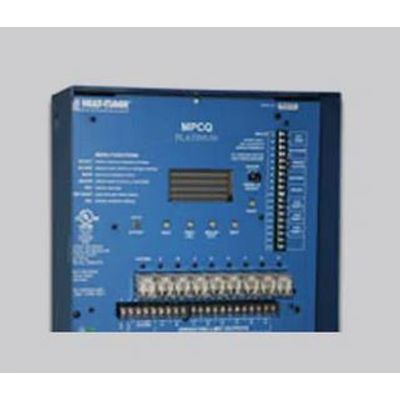

The MPCQ Platinum control Series is steam outdoor reset multi-boiler heating control. It is designed to control multiple steam boilers in single-pipe and two-pipe steam heating systems. It either utilizes the steam cycle concept and the outdoor temperature, the control varies the duration of the steam supply to the building in a cycle based on the outdoor temperature. Or, sequence the boilers to achieve a fixed set point. Each of these options has a set of pre-configured, but adjustable settings to meet the specific needs of each building. The MPCQ Platinum will reduce fuel costs while maintaining a more comfortable space temperature.The MPCQ Platinum varies the duration of steam flow into a building by controlling up to 8 boiler stages (8 on/off or 4 lo/hi). Additional stages can be added with an Extension Panel.
