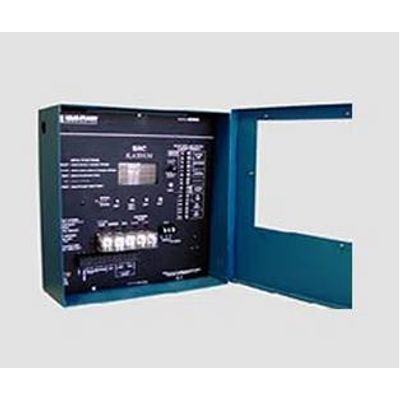

Heat-Timer - Model SRC (Vacuum) -Subatmospheric Vacuum Steam Outdoor Reset Heating Control System
The SRC Platinum is a vacuum steam outdoor reset control for sub-atmosphere steam systems. The SRC Platinum will start/stop the vacuum pump and boiler, and modulate the steam motorized valve to vary (cycle) the duration of seam flow into a building’s radiation in accordance with changes in outside temperature. The colder it is outside, the more steam that is allowed to enter the buildings radiation.
The SRC Platinum offers multiple communication options. The Internet communication package offers a large group of optional sensors that can be monitored, logged, and alarm set. In addition, Heat-Timer can provide a cellular Internet connection to the control (See Internet communication ). The BACnet Communication package provides BACnet IP or BACnet MSTP compatibility in addition to the capability of communicating using other protocols when used with a Fieldserver gateway. The Modbus Communication package provide Modbus RTU Communication capability to the SRC Platinum control.
- Steam/Vacuum outdoor reset control
- Adjustable outdoor temperature cutoff
- Adjustable reset ratios and offset
- Automatic boiler start
- Full valve modulation
- Automatic vacuum control
- Valve opening pulse delay
- EMS capable using the SHUTDOWN and PROVE inputs
- Vacuum Pre-Purge and Post purge are used for better control
- Selectable valve opening curves
- Operates valve with feed back signal or time based
- 4 programmable Day/Night adjustments per day
- Auxiliary Output that can control other equipment based on a separate Built-In programmable 4 separate On/Off schedule settings per day
- Optimum variable boost (Morning warm-up)
- Fast Cycle for easy troubleshoot
- EE Prom backup of all program settings
- Battery backup of program clock
- Solid state circuitry
- Self diagnostics
- Internet Communication option
- BACnet IP or MSTP Communication option
- Modbus RTU Communication option
- Solid state sensors can be extended up to 500′ from the control
- Accuracy of ±1ºF or 1% of full scale
- Network input allows the HWR Platinum to connect to multiple sensors (Mini-MIG Sensors, Neuron Temperature Sensors, Wireless Sensors, Water Meter, Oil Tank Level, Smoke Alarm) using the Internet to monitor and fine tune its operation.
- Optional Remote Communications using either the Internet, BACnet,or Modbus packages. You’ll be able to view status, change settings as well as analyze performance from virtually anywhere.
- The SRC Platinum is UL Listed.
