Heinrichs Messtechnik GmbH products

The Heinrichs TMU-W Coriolis mass flow meter not only conforms to, but surpasses by far all requirements of the “Organization International de Métrologie Légale ” in the OIML R139 2018 in terms of measuring accuracy at high pressure.

TMU-T is a type of Coriolis mass flow meter that offers many advantages for use in harsh industrial applications. These meters are designed to measure the mass flow rate of liquids or gases in a wide range of industrial processes, including those that involve highly corrosive materials.

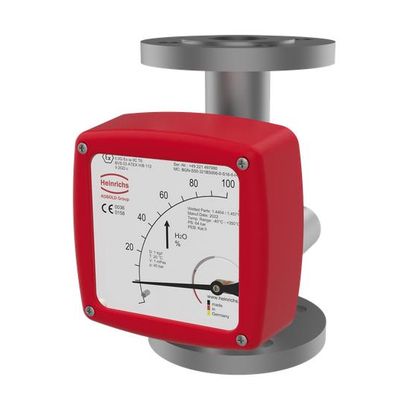

The BGN meter is suitable for flow measurement of liquid or gaseous products and steam in pipes. Indication of momentary volume- or mass flow per time unit.  Due to its rugged design it is suitable for processes under difficult and harsh conditions. For process monitoring and regulation, the units are available with additional electrical equipment.

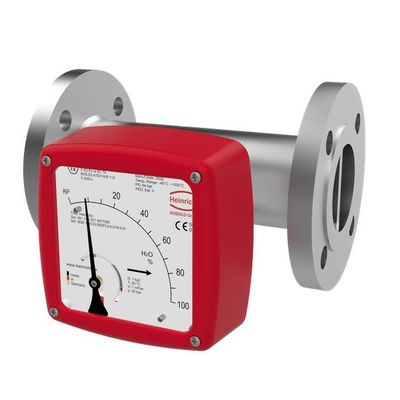

The BGF measuring device is suitable for measuring the flow of liquid or gaseous products and steam in pipelines. The current flow rate is displayed in volume or mass per unit of time. Due to its design, the BGF is particularly suitable for processes under difficult and harsh operating conditions. Any flow direction offers expanded application options.

The KDS and BGK flowmeters are used for measuring the flow of liquid and gaseous products in pipes as well as dosing, monitoring, adjusting and controlling them. They show the current flow quantity in volume or mass per unit in time.

The BA-type liquid level meter is suitable for level measurement of liquid products in open or pressurized vessels. The device is based on Archimedes’ buoyancy principle.

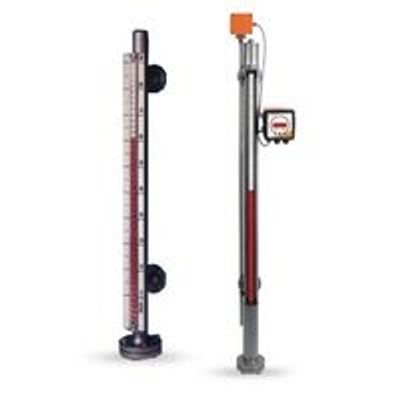

Kobold bypass level indicators are used for continuous measurement, display and monitoring of liquid levels. The bypass tube is attached onto the side wall of the vessel. According to the law of communicating tubes the level in the bypass tube equals the level in the vessel. A float with embedded circular magnets in the bypass tube follows the liquid level and transfers it in a non-contacting manner to a display fitted outside the tube or to a monitoring device. The following indication and monitoring devices are available.

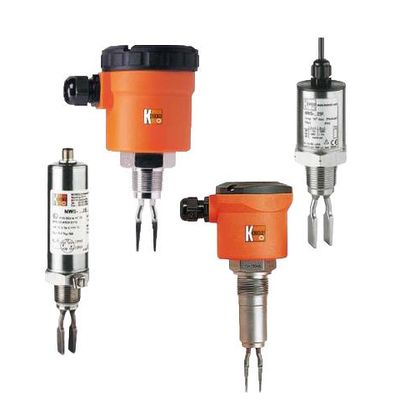

The KOBOLD liquid level switch NWS is designed as a 2 and 3-wire switch and can be universally used in vessels and pipelines. The NWS operates on the tuning fork principle in air at resonance frequency. A piezoelectric crystal is used for excitation of oscillations and for monitoring the actual oscillation frequency.

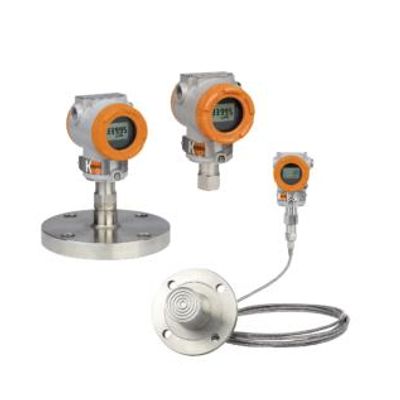

The Kobold differential pressure transmitter type PAD is a high performance microprocessor based transmitter with flexible pressure calibration and output, automatic compensation of ambient temperature and process variables, configuration of various parameters and communication using HART® protocol. The applications are very versatile, such as for pressure measurement, flow measurement or level measurement.

The KOBOLD pressure transmitter type PAS is a high performance microprocessor based transmitter with flexible pressure calibration and flexible output. It features automatic compensation of ambient temperature and process variables. By means of the HART^® protocol it is possible to communicate with the device and to perform a configuration of various parameters. All data of the sensor are read into an EEPROM, modified and stored.
