HH-Fabrication - Rock Bucket

Constructed of 1” solid plate steel Grade 50 with plasma cut teeth in plate. Rods are 7/8” solid rod placed 3 ½” on center which gives a 2 ¾” spacing between rods. Welded to a heavy 3”x 4” x 3/8” angle iron top and bottom. Side plates are ½” plate steel. Reinforced heavy duty universal mounting brackets. Bucket constructed for many years of use. Ideal for rocks, brush and debris.

HH-Fabrication - Low Profile Dirt Bucket

Constructed of ¼” plate steel with ¾” x 6” Cutting Edge weld on (bolt on options also available). ½” x 4” wear plates on bottom for extra strength. Reinforced heavy duty universal mounting brackets; gusseted top and bottom for extra strength.

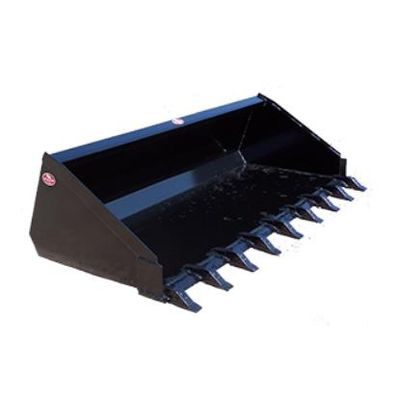

HH-Fabrication - Tooth Bucket

Constructed of ¼” plate steel with ¾” x 6” Cutting Edge. Heavy duty case iron adapter cover with steel tooth. ½” x 4” wear plates on bottom for extra strength. Reinforced heavy duty universal mounting brackets; gusseted top and bottom for extra strength.

HH-Fabrication - Rock Bucket Grapples

Constructed of 1” solid plate steel with plasma cut teeth in plate. Rods are 7/8” solid rod placed 3 ½” on center which gives a 2 ¾” spacing between rods. Welded to a heavy 3”x 4” x 3/8” angle iron top and bottom. Side plates are ½” plate steel. Reinforced heavy duty universal mounting brackets; gusseted top and bottom for extra strength. Heavy duty grapples made from ½” plate steel. 2”x 8” hydraulic cylinder. Includes flat faced couplers and hoses with built in orifices.

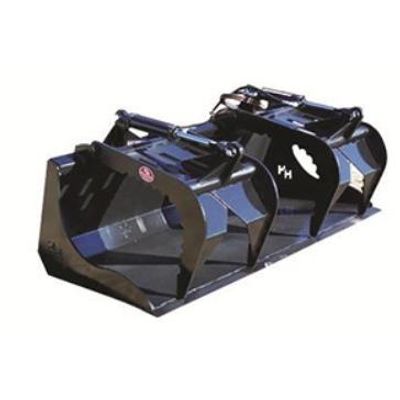

HH-Fabrication - Bucket Grapple

Bucket constructed of ¼” plate steel with ¾” x 6” cutting edge. Heavy duty grapples made from ½” plate steel. Reinforced heavy duty universal mounting brackets; gusseted top and bottom for extra strength. Two 2”x 8” hydraulic cylinders. Half moon plasma cut end plates made from ½” plate steel. Includes flat faced couplers and hoses with built in orifices.

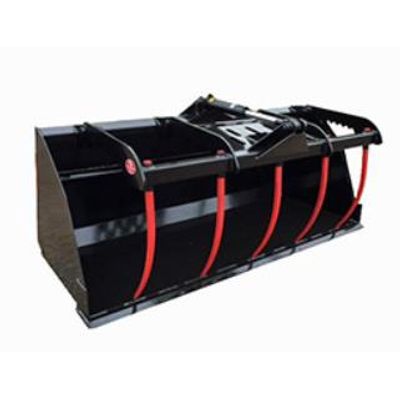

HH-Fabrication - Claw Bucket Curved Tine Grapple

Bucket constructed of 3/16” plate steel with 3/4” x 6” cutting edge. Five removable 32” forged curved tines with sleeves. Complete with cylinder, hoses and flat faced couplers with built in orifices. Reinforced heavy duty universal mounting brackets; gusseted top and bottom for extra strength. Also available for tractor loaders. Pivot points are all sleeved with grease inserts. Ideal for feed, silage, hay, round bales, packed material, debris and brush clean up.

HH-Fabrication - Big Ripper

Includes three replaceable ripper teeth. Ripper teeth are 6” long. Reinforced heavy duty universal mounting brackets. Half moon plasma cut end plates made from ½” plate steel. Ideal for roots, stumps, trenching and boulders.

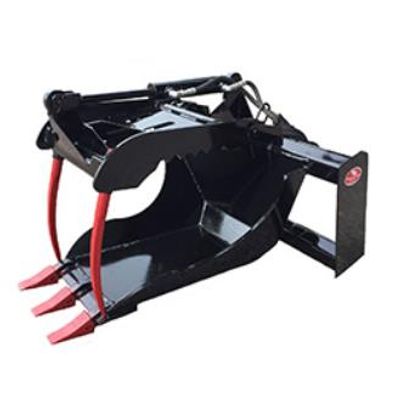

HH-Fabrication - Big Ripper Grapple

Includes 3 replaceable ripper teeth. Ripper teeth are 6” long. Constructed of two sleeved 24" conus tines. Single hydraulic cylinder. Reinforced heavy duty universal mounting brackets. Half-moon plasma cut end plates made from 1/2” plate steel. Includes flat faced couplers and hoses with built in orifices. Ideal for stumps, rocks and brush.
