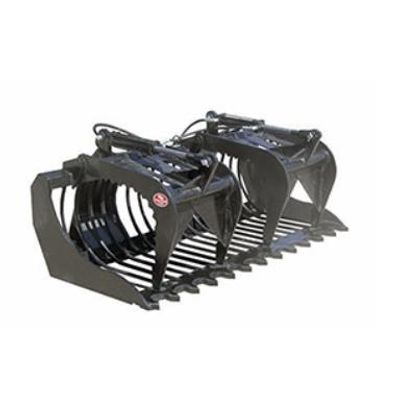

HH-Fabrication - Rock Bucket Grapples

Constructed of 1” solid plate steel with plasma cut teeth in plate. Rods are 7/8” solid rod placed 3 ½” on center which gives a 2 ¾” spacing between rods. Welded to a heavy 3”x 4” x 3/8” angle iron top and bottom. Side plates are ½” plate steel. Reinforced heavy duty universal mounting brackets; gusseted top and bottom for extra strength. Heavy duty grapples made from ½” plate steel. 2”x 8” hydraulic cylinder. Includes flat faced couplers and hoses with built in orifices.
