HP Valves B.V. products

Pressure rating 1500 / 2500 (4500) lbs. PN 160 - PN 640. Size range 3/8 - 2. Body materials SA105N, SA182-F12, SA182-F22, SA182-F91, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903. End connections SW, BW, NPT, Flanged. Features Integral Bonnet (Bonnetless), Loose Backseat

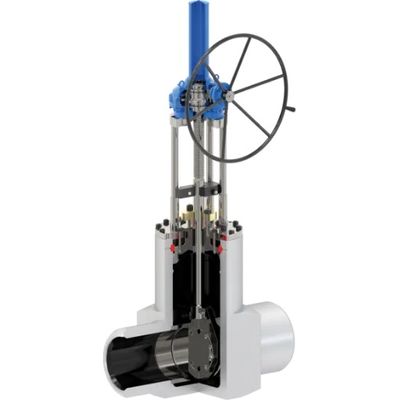

Pressure rating 900 / 2700 (4500) lbs. PN 160 - PN 640. Size range 3/8 - 4. Body materials SA105N, SA182-F22, SA182-F91, SA182-F316(L). End connections BW, SW, NPT, Flanged. Features Pressure Seal Bonnet .

We provide a full range of high quality forged and casted steel valves, suitable for on-off and throttling applications. We offer pressure seal gate, globe and check valves for high pressure and high temperature applications, suitable for today's market needs. We offer solutions suitable for most critical applications, including main steam isolation valves for cycling power plants.

Pressure rating 600 / 2500 lbs. Size range 1/2 - 1. Body materials SA350-LF2, SA182-F316, SA182-F51. End connections NPT, Flanged. Features Integral Bonnet (Bonnetless), Integral Seat, Loose Backseat

Pressure rating 1500 / 2500 (4500) lbs. PN 160 - PN 640. Size range 3/8 - 2. Body materials SA105N, SA350-LF2, SA182-F12, SA182-F22, SA182-F316(L), SA182-F51, SA182-F91. End connections BW, SW, NPT, Flanged. Features Integral Bonnet (Bonnetless), Loose Backseat

Pressure rating 900 / 2500 (4500) lbs. PN 160 - PN 640. Size range 3/4 - 2. Body materials SA105N, SA182-F12, SA182-F22, SA182-F91, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903. End connections BW, SW, Flanged. Features Integral Bonnet (Bonnetless), Loose Backseat (Fixed Backseat Optional)

Pressure rating 1500 / 2500 (4500) lbs. PN 160 - PN 640. Size range 3/8 - 2. Body materials SA105N, SA350-LF2, SA182-F12, SA182-F22, SA182-F316(L), SA182-F51. End connections BW, SW, NPT, Flanged. Features Integral Bonnet (Bonnetless), Loose Backseat .

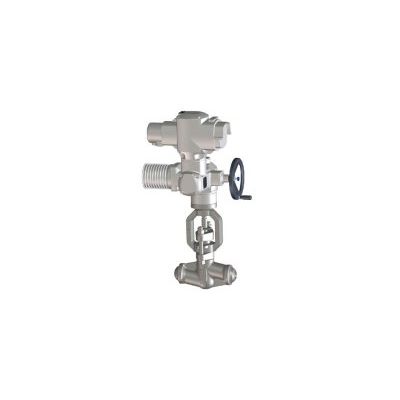

Fig no. 02.1, 02.6, 02.2. Pressure rating 1500 / 2500 (4500) lbs. PN 160 - PN 640. Size range 3/8 - 4. Body materials Details regarding body materials indicated on the valve specific data sheets.. End connections Details regarding end connections indicated on the valve specific data sheets. Features Details regarding features indicated on the valve specific data sheets. Valves can be fitted with all types and makes of actuators.

Pressure rating 900 / 2700 (4500) lbs. PN 160 - PN 640. Size range 3/8 - 4. Body materials SA105N, SA182-F22, SA182-F91, SA182-F316(L). End connections BW, SW, NPT, Flanged. Features Pressure Seal Bonnet

Pressure rating 900 / 4500 lbs. 6.000 PSI / 10.000 PSI. Size range 1/4 - 1. Body materials SA350-LF2, SA182-F316(L), SA182-F51. End connections BW, SW, NPT, Flanged. Features Integral Bonnet (Bonnetless), Integral Seat, Loose Backseat .
