ECLIPSE has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. ECLIPSE also measures Resistance, Frequency, Capacitance and Temperature with K-type probe and infrared temperature with built-in thermal camera. The Bluetooth connection allows for the transfer of the saved snapshots by means of the dedicated App HTMercury.

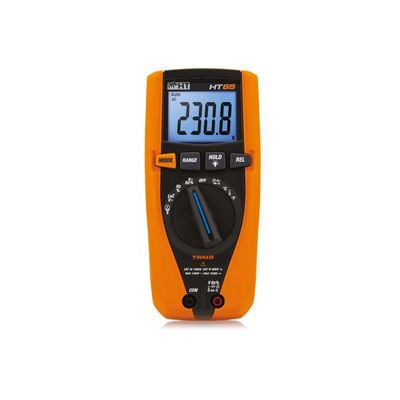

HT65 belongs to the TRMS CATIV 600V series of digital multimeters, made unique by the ability to measure DC voltage up to 1500V. It is also able to measure the temperature through the K probe, the AC / DC current with an external transducer, and the LoZ low impedance voltage input. Like the other multimeters in the series, it has an Autorange function and a defined backlit display.

HT9025 has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/ EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9025 also measures Resistance, Frequency, Capacity and Temperature with K-type probe.

Multifunction TRMS DMM, Safety test on electrical plants and Wire mapping Test on LAN cables. M75 is an innovative instrument which joins together DMM, Safety Tester and LAN checker features inside a compact and ergonomic user-friendly structure and with a extremely reduced weight (800g only!). The DMM is a professional instrument with TRMS measurement of AC/DC voltage, AC Current (through external clamp), Resistance and Frequency. Additional features are MAX/MIN/AVG function, HOLD function and PEAK detection with Response Time of 1ms, useful for surge currents detection.

HT39 model perform basically AC/DC TRMS voltage measurements, DC/AC TRMS current measurements in totally autorange. AC voltage and current Peak values such important in industrial environments. This model is also provided with RS-232 interface for PC connection and real-time visualization of electrical parameters. In this way (with optional Windows software) recordings values with selectable sample period are possible. The meter is designed for achieve CAT III 1000V and CAT IV 600V, with Class 2 protection (double insulation), according to EN 61010-1 safety Standard and have a internal fuse protection on input current. HT39 is fitted in a rubber holster for protection by hurts and a practical support for easy to use in horizontal position.

Flashmeter; Trms digital multimeter up to 600v unbreakable and water resistant with automatic measurement sequence, Tough, Trms, Dc voltage up to 600v, Ac voltage up to 600v, Ac voltage detection without any contact, Resistance, Continuity test with buzzer, Auto ranging,Auto hold, Built-in flashlight, Ip67 protection, Backlight, Auto power off.

MERCURY is a TRMS digital multimeter capable of measuring AC/DC voltage up to 1000V, AC/DC current up to 10A as well as resistance, continuity test, diode test, frequency, capacitance and temperature with K-type probe. Other major functions include AC+DC mode taking into account DC components overlapping AC signals and current measurement with standard and flexible transducer clamps (accessory F3000U).

HT revolutionizes the portable instrument market by introducing the new JUPITER. The first multimeter who incorporates the functions available only in standard electrical safety testers and professional High-end multimeters.
