Huaway Guardrail Engineering Co products

Galvanized Steel Guard Rails, supplied with Parts and Accessories for complete systems. Steel Highway Guardrails, Hot-Dip Galvanized Finish, AASHTO M180.

Galv.Highway Guardrails General Applied Information.  Normal Sizes:  L:3200/3810/4000/4300/4320× W:306/310/312/380X. Height : 80/82/83/85× Thickness :2.75/3/4mm.  Available in different sizes. Porfile: W-beam, Three-beam.

W6x9 Guardrail for Highway Road and Bridge Project. Specification of galvanized guard rails and accessories: Bottom Post 1 & 2 for the SRT-350 Type B End treatment.

3mm Hot Deep Galvanized W Beam Rails. Width - 300mm, Length - 3810mm, Height - 85mm, Thickness 3mm.

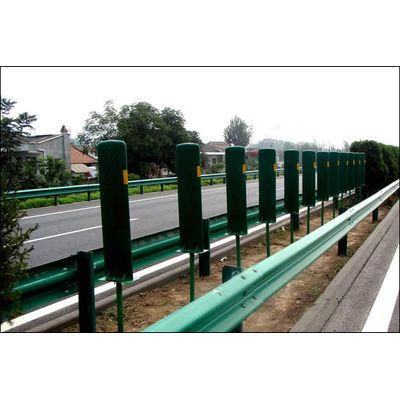

Plastic Coated Highway Guardrail is an engineered safety barrier designed to create a physical and visual separation between traffic lanes and other roadside hazards.  It is composed of a steel core that is then covered in a plastic coating, which helps protect the metal from damage. To apply the finish you must first clean the surface and then apply a primer, followed by the plastic coating.

Guardrail Brackets : Material: SteelQ235 or Q345. Size: 300*70*4.5mm, 320*70*4.5mm. Surface: Hot dipped galvanized
Features: Corrosion resisting. Used to connect the post and guardrails.

Guard Rail Posts Coated / Color Painted: Size:140*4.5*2140, 114*4.5*1300(1800). Material: steelQ235 or Q345
Certificate:GB/T19001-2008/ISO9001:2008. Hot dipped galvanized static sprayed post. Features: Corrosion resistant, color options.

Round Pipe / Column Posts. Galvanized static sprayed post. Size:140*4.5*2140, 114*4.5*1300(1800). Hot dipped galv. Material: SteelQ235 or Q345.

Welded mesh fencing is an effective way to provide highway safety. Fabric of welded mesh is made from steel wire welded together for added strength and durability.  Mesh materials are popularly from galvanized steel in various gauges, and different plastic coated colors and finishes. Welded mesh fence panels are available in a variety of specifications depending on the intended application.

We supply woven wire mesh fences galvanized finishes used for construction of road side fencing barrier for highways. The woven wire field fence for highway fencing is hot dipped galvanised according to AASHTO M 279, (ASTM A 116) coating class 1 standard. The unique woven wire with graduated mesh spacing can effectively prevent deer, sheep and other animals from entering highway roads and ensure a safety traffic.
