Hydroseal Canada Incorporated products

Ball Valves

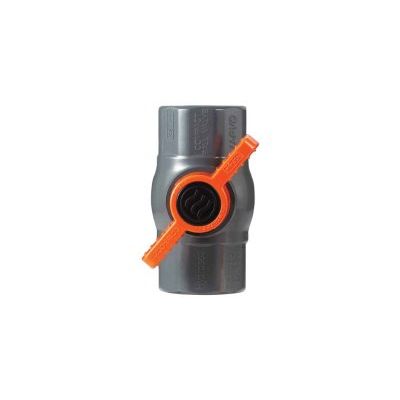

Quark - Isolation Compact Ball Valves

Hydroseal Canada`s rugged, compact all-plastic quark PVC Ball Valves incorporate many design features found only on higher cost ball valves. Features such as Teflon seats, full porting and a 150 PSI pressure rating are all standard on every size of Hydroseal Canada`s range of Compact Ball Valves. This item is consistently certified and rated as one of our most popular and widely appreciated products. NSF listed.

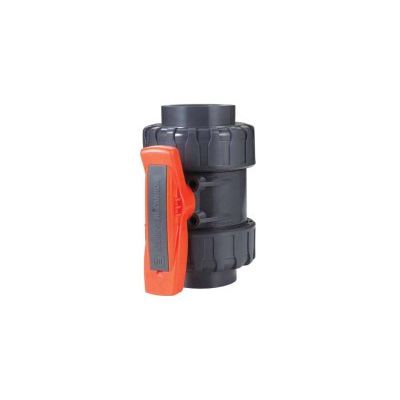

Fortis - Isolation True Union Ball Valves

Hydroseal Canada's fortis series True Union Ball Valves are cost effective, yet rugged enough to stand up to demanding industrial and commercial applications. The valves are assembled without any use of a silicon based lubricant and may be used for most forms of process media.

Isolation True Union Ball Valves

Twenty-five years of advanced experience in molding, manufacturing, logistics, transportation, materials, application have gone into Hydroseal Canada`s kaplan True Union Ball Valves. This valve is completely designed to address today`s fast-paced world and global trade. Incorporating this tried-and-tested functionality, Hydroseal Canada has gone one step further. This kaplan valve may be retrofitted with spare parts from our unions, flanges and Sharkfellow Ball Check Valve. With a combination of seven seals and two reversable, sturdy teflon seats, this valve is designed for superior performance.

Butterfly Valves

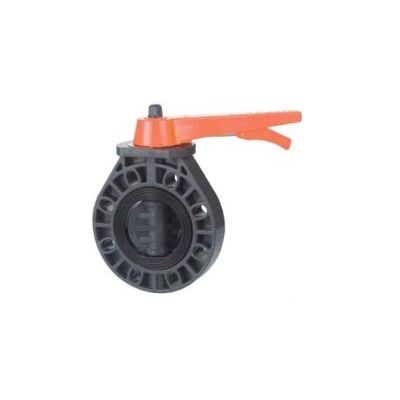

Carrot Top - Isolation Butterfly Valves

Hydroseal Canada`s 2`through 12`all-plastic carrot top Butterfly Valves are rated at a full 200 PSI. Hydroseal Canada valves are constructed from a one piece body that incorporates fully supported flanged bolt holes to prevent stressing of the mating pipe flanges. Their heavy duty construction stands up to the most demanding applications. The integral mounting pad ensures that the valve operator is used with lever handle, worm gear or actuator. Hydroseal's Butterfly Valves features stainless steel stems and a unique, full body liner that has a V-notch retention design. This assures positive sealing of the liner to the valve body without the use of adhesives or thermal bonding. An integrally molded face seal provides positive sealing against the mating flange without the need for additional gaskets and the lever has built-in lockout feature. Hydroseal Canada Butterfly Valves can be easily fitted into a metal piping system.

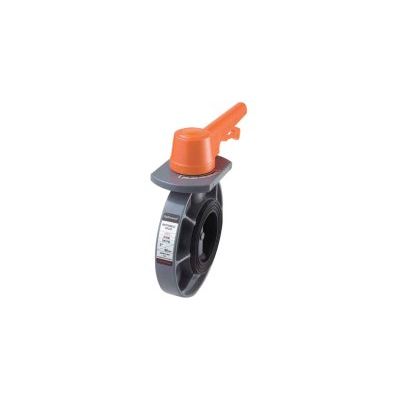

Titan - Isolation Butterfly Valves

Hydroseal Canada`s 2` through 8` all plastic titan Butterfly valves are rated at a full 150 PSI. The discs are also molded and re-engineered for precise flow control, with options available for PVC,CPVC,PP or PVDF. These Valves have no metal in contact with the process media. They cannot corrode or rust, nor will they contaminate sensitive fluids flowing through them.

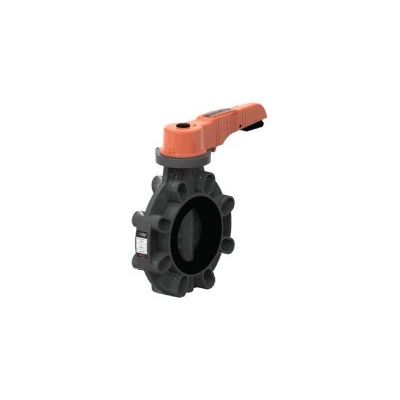

Sertao - Butterfly Valves

Hydroseal Canada`s 2` through 8` all plastic sertao Butterfly valves are rated at a full 200 PSI. Hydroseal Canada valves are constructed from a precise unibody mold incorporating our trademarked WTF hole patterns which are fully supported to prevent stressing of mating flanges. Our new sertao model accommodates heavy industrial requirements, robust construction standards and is guaranteed to perform in the most demanding applications. Along with standard features,Sertao is light-weight,crafted from the latest models in industrial design & engineering. It has a 11 stop position control system and a clear-view window on its handle for easy tracking /marking in assembly processes. The Sertao can be easily plugged into any existing metallic or plastic pipeline.

Check Valves

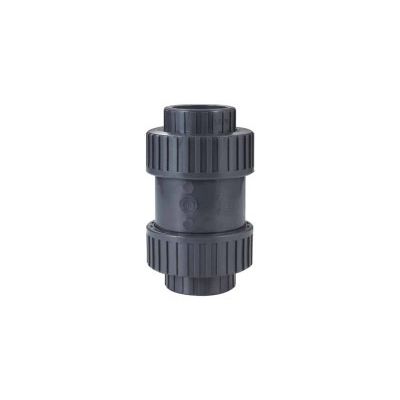

Sharkfellow - Isolation True Union Check Valve

Hydroseal Canada`s sharkfellow.` True Union Ball Check Valves prevent reversal of flow in piping systems. They are ideal where backflow could potentially cause damage to pumps, filters, or process equipment. Our True Union Ball Check Valves operate without the need for any adjustments or settings. Line pressure moves the solid plastic ball off the elastomer seat, opening the valve. When the inlet flow stops, back pressure moves the ball back onto the seat - stopping the flow.

Other Valves

Aquaeduct - Isolation Diaphragm Valves

Hydroseal all-plastic diaphragm valves are engineered to provide superior handling of difficult media such as corrosive fluids, abrasives and slurries. They can also be used for high purity and sanitary applications. Available in manual or automated models, these valves can be used for on/ off and throttling service and are self draining on one side so that little to no dead volume remains in the valve. Available in PVC, CPVC, PVDF and PPL.

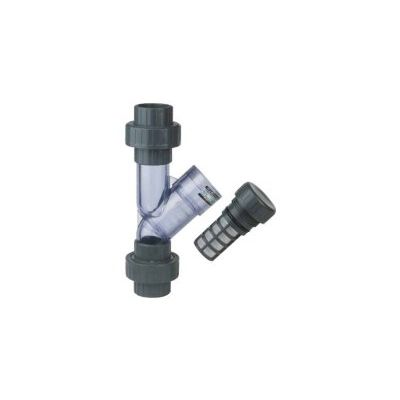

Kiyo - Isolation Strainers Protect Piping System

Hydroseal Canada`s kiyo strainers protect piping system components from damage caused by dirt or debris in the process media. They cost less than other types of strainers and are light-weight and compact. Because they can often be supported by the pipeline alone, they work in applications where other types of strainers cannot. Our strainers are supplied with a perforated plastic mesh. Stainless steel meshes are also available on request.

Hydronaut Series - Electric Actuator

- Suitable for aggressive media - On-Off modulating control - High Flow rate value and Low power consumption - Visual position indicator - Built in manual override for safety and convenience - IP 67 Weather proof housing - Explosion proof housing on request.
