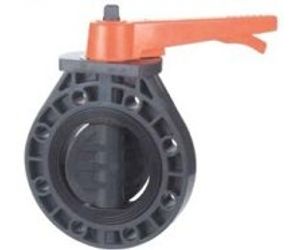

Titan - Isolation Butterfly Valves
Hydroseal Canada`s 2` through 8` all plastic titan Butterfly valves are rated at a full 150 PSI. The discs are also molded and re-engineered for precise flow control, with options available for PVC,CPVC,PP or PVDF. These Valves have no metal in contact with the process media. They cannot corrode or rust, nor will they contaminate sensitive fluids flowing through them.Advanced and Tested Design
Hydroseal Canada Butterfly Valves feature stainless steel stems and a unique full body liner that has a V-notch retention design. This assures positive sealing of the liner to the valve body without the use of adhesives or thermal bonding. An integrally molded face seal provides positive sealing against the mating flange with the need for additional gaskets, and the lever handle has a built in lock out feature. The discs are also molded and re-engineered for precise flow control, with options available for PVC, CPVC, PP or PVDF.
Easy Compatibility
Hydroseal Canada Butterfly Valves can be easily fitted into a metal piping system. All valve sizes meet industry face-to-face standards allowing simple retrofit.
No Metal, No Corrosion
These valves have no metal in contact with the process media. They cannot corrode or rust, nor will they contaminate sensitive fluids flowing through them.
- Rated at 150 PSI
- Stainless Steel Shaft
- Fully Supported Flange Bolt Holes
- Universal Bolt Holes suitable for ASTM, DIN and JIS systems
- V-Notch Liner
- Lug Body Design
- Worm Gear Operators
- Electric Actuators
- Pneumatic Actuators
- PVC.CPVC.PP or PVDF discs
- Viton, EPDM or Nitrile Liners
