ILS Automation products

Replacement Controls System

When NBS Eppendorf and B. Braun Sartorius stopped supporting your systems. You started scanning the used market for boards and parts to keep your equipment up and running. ILS has a better solution. One that lets you keep your existing glass and stainless vessels and replace the controller with an open, adaptable system for a fraction of the cost of a new system. The AFC 900 series is a drop-in replacement controller for any glass reactor system, including jacketed reactors, but with direct analog and digital sensor support, scales, MODBUS, and more. The AFC 2000 series is designed for larger SIP/CIP systems. Let ILS customize your controls with open, non-proprietary, quality components. You decide what to update. ILS will customize the system to meet your current and future requirements for 10% to 20% of the cost of a new system.

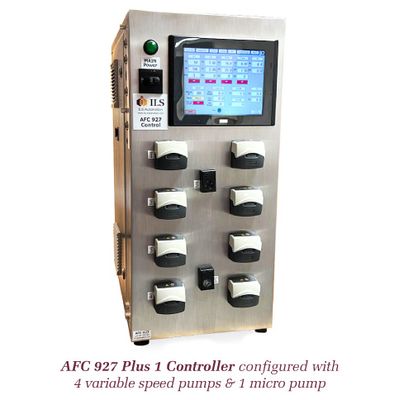

Model AFC 900 - Bioreactor Controller

Designed as a “drop in” replacement system for bench-top reactors, the AFC 900 bioreactor controller outclasses its competition thanks to a reliable, dedicated and open process control system. ILS optionally provides the AFC 900 with Broadley-James or Chemglass microbial or cell culture glass reactors ranging from 3 to 20 liters. The AFC bioreactor controller supports a heating blanket or jacketed reactors with a separate water box. The AFC also controls other reactor vendors such as B.Braun/Sartorius, Applikon, and New Brunswick (NBS). Our best-in-class AFC line of bioreactor controllers are designed with long-term support and operation in mind, AFC controllers are completely customizable and built to your exact specifications

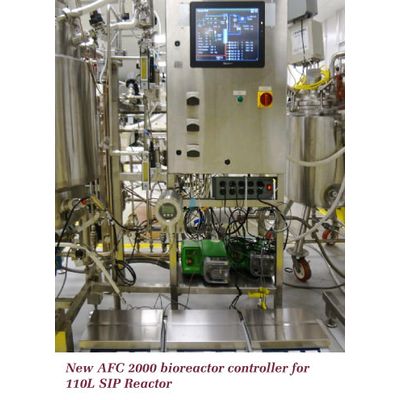

Model AFC 2000/3000 Series - Replacement Bioreactor Control System

The AFC 2000 provides replacement controls for existing Sartorius steel reactors up to 40L. Capitalize on existing steel by modernizing outdated control hardware in a cost-effective way when compared to the expense of purchasing and installing new reactor systems. The AFC 2000 is based upon modern control hardware and integrates with existing instrumentation and control elements. ILS can customize the AFC 2000 to fit specific needs including updating reactors with modern instrumentation and control elements. All ILS controllers are fully integrated into our Batch Expert+ software, allowing local and remote operation of our systems.

Complete Bioprocess Control Systems

Streamline Your Lab’s Bioprocess Applications With A Turnkey Bioreactor System. Introducing Complete Bioprocess Control Systems: AFC Complete. Integrated: Integrate all of your lab equipment – scales, gas analyzers, vessels, controllers, & software – into one comprehensive bioprocess control system, right out of the box. Scaleable: Your AFC Complete™ System’s capabilities will take you from the laboratory to the plant floor. Modular control cabinet internals allow you to expand & customize your system as your needs change. Switch out bioreactor and fermentor vessels for ultimate flexibility. Fast: Our most popular system configurations are offered as “out-of-the-box” solutions to help you save time, effort, & money. Put your system to work in the lab faster. Convenient: Remove the need to separately integrate your bioreactor with a controller.
