Complete Bioprocess Control Systems
FromILS Automation
Streamline Your Lab’s Bioprocess Applications With A Turnkey Bioreactor System. Introducing Complete Bioprocess Control Systems: AFC Complete. Integrated: Integrate all of your lab equipment – scales, gas analyzers, vessels, controllers, & software – into one comprehensive bioprocess control system, right out of the box. Scaleable: Your AFC Complete™ System’s capabilities will take you from the laboratory to the plant floor. Modular control cabinet internals allow you to expand & customize your system as your needs change. Switch out bioreactor and fermentor vessels for ultimate flexibility. Fast: Our most popular system configurations are offered as “out-of-the-box” solutions to help you save time, effort, & money. Put your system to work in the lab faster. Convenient: Remove the need to separately integrate your bioreactor with a controller.
Most popular related searches
bioprocess control
bioprocess system
bioprocess
flow control
replacement syringe
bioreactor system
cell culture
syringe pump
gas analyzer
control cabinet
-
Ignition SCADA: Maximize available development time & resources with Batch Expert+. Written on the Ignition SCADA platform, ILS offers our premier-level integration expertise to boost your lab’s productivity with data acquisition, monitoring & control.
-

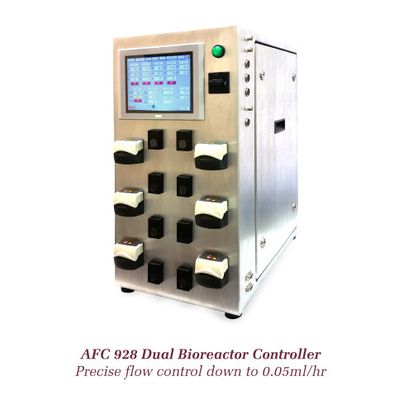

NEW AFC 928: Micro pumps replace syringe pumps for very low flow applications with precise control down to 0.05 ml/hr
-
NEW AFC 928: 3 full size and 4 micro Watson Marlow variable speed pump heads per reactor
-
AFC 927/928 controls two reactors, AFC 917 controls a single reactor
-
Standard 500 W stirrer motor (~0.5 HP) supports 2 — 15L reactors
-
Controls a variety of glass reactors including Applikon, Sartorius, Broadley James, New Brunswick and Millipore Single-Use
-
Flexible design supports either heat blanket or jacketed reactors with water box
-
Cell Culture or Microbial applications with same configuration
-
Gas mixing supports one to six gas flow controllers for multiple sparging and headspace ports
-
Open, non-proprietary design allows for easy customization. Customers have access to the controller software and detailed wiring diagram.
