IMS Robotics GmbH products

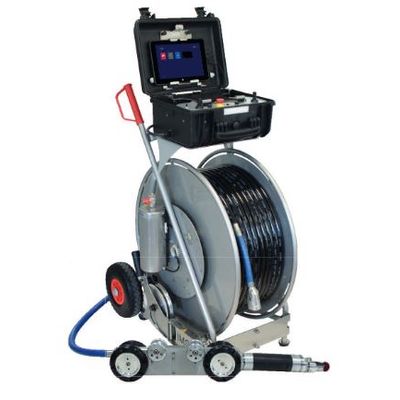

Range of application in pipes from DN 70 up to DN 100/3” - 4” (inside diameter), excellent flexibility in bends up to 90° in DN 70/3”, pneumatic clamping unit permits usage also in vertical pipes, only smallest access openings required, convenient supply hose package of 15 m/49 ft or 25 m/82 ft, high cutting force through powerful air motor, flexible operation due to on the supply hose movable steering wheel and removable monitor, permanent monitoring of cutting operation by integrated color camera, high mobility convenience through compact stainless steel chassis, several cutting tools can be installed, accessories with construction site tools.

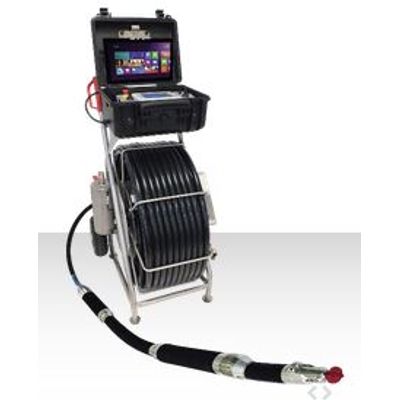

Large range of application in pipes from DN 80 up to DN 150/3“ up to 6“ (inside diameter) without conversion work, optional extendable until DN 250/10“.

Large range of application in pipes from DN 80-150/3’’-6’’  (inside diameter) without conversion, work, optionally  extendable up to DN 250/10’’.

Large range of application in pipes from DN 80 to 150/3“ up to 6“ (inside diameter), optional up to DN 250/10“

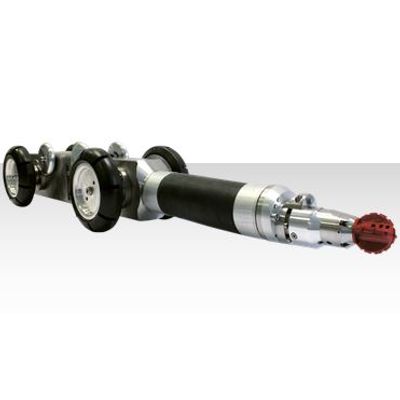

Large range of application in pipes from DN 80-150/3’’-6’’ (inside diameter), optional up to DN 250/10’’.  Excellent flexibility in bends up to 90° in DN 100/4’’ through rotating and swivelling of the cutter head.

Large range of application in pipes from DN 80-150/3’’-6’’ (inside diameter), optionally up to DN 250/10’’. Excellent flexibility in bends up to 90° in DN 100/4’’ through rotating and swivelling of the cutter head.

Very robust cutting robot for small and main sewer from DN 150-400/6“-16“.

Very robust cutting robot for small and main sewer from DN 150-400 / 6’’-16’’. 2 exchangeable air-operated cutter motors. 400° electrically driven rotary movement / 90° swivel movement.

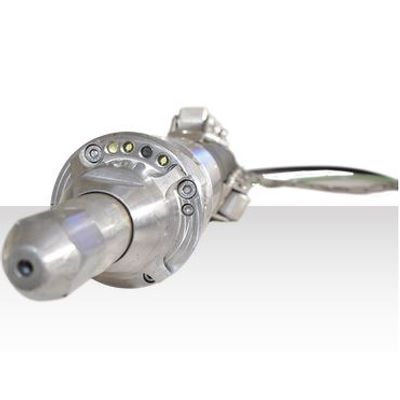

Cleaning robot for pipes and main sewer from with rotating and swivelling nozzles for the targeted romoval of contaminations and
deposits. Usable from DN 100 / 4" up to 250 / 10". Rotating and swivelling nozzle for pressure up to 2,500 bar. Colour camera with adjustable LED and wiper. Flexibility in bends in PVC pipe from DN 125 (depending on pipe condition).

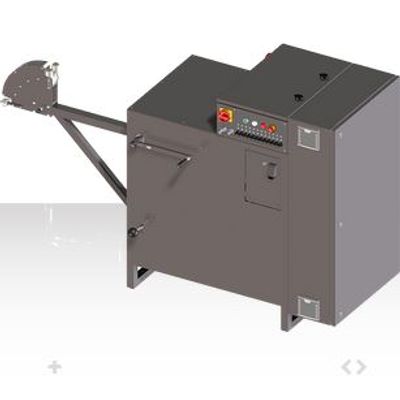

Cable reel: For 180 m/590 ft curing cable (max. 200 m/656 ft cable length possible). Extension arm with deflection roller to ensure minimum bending radius of the cable. All connections are hard-wired. Emergency operation via hand crank in case of power failure. PLC with control panel.
