IMS - Model UV 5200 -UV-Curing Systems

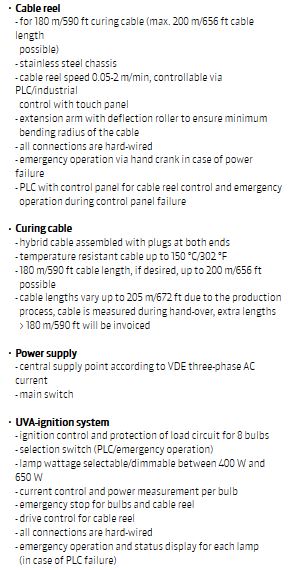

Cable reel: For 180 m/590 ft curing cable (max. 200 m/656 ft cable length possible). Extension arm with deflection roller to ensure minimum bending radius of the cable. All connections are hard-wired. Emergency operation via hand crank in case of power failure. PLC with control panel.
Most popular related searches
Curing cable
- hybrid cable assembled with plugs at both ends
- temperature resistant cable up to 150 °C/302 °F
Power supply
- central supply point according to VDE three-phase AC current
UVA-ignition system
- ignition control and protection of load circuit for 8 bulbs

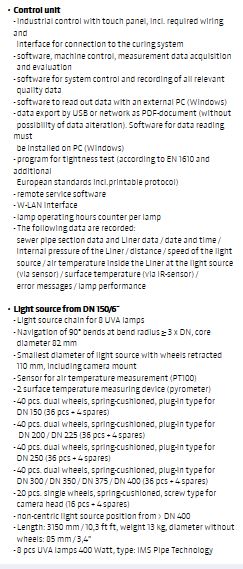

Control unit
- industrial control with touch panel
- software, machine control, measurement data acquisition and evaluation
- software to read out data with an external PC (Windows)
Light source from DN 150/6"
- Light source chain for 8 UVA lamps
- Navigation of 90° bends at bend radius ≥ 3 x DN, core diameter 82 mm
- 8 pcs UVA lamps 400 Watt, type: IMS Pipe Technology

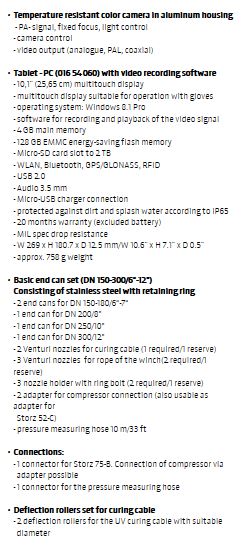

Temperature resistant color camera in aluminum housing
Tablet - PC (016 54 060) with video recording software
Basic end can set (DN 150-300/6“-12”)
Deflection rollers set for curing cable
Ratchet straps and pull-in belts
