Submersible stainless steel probe. Nylon or aluminum reels (for tapes longer than 150 m or 400 ft) mounted on sturdy polyurethane-coated steel frames. Available in metric or U.S. units in lengths up to 600 m (2,000 ft). Accuracy to each millimeter or 0.01 foot. Breaking load over 45 kg (100 lbs). DC to AC conversion prevents corrosion and mineral buildup on probe. Sensitivity dial filters out false signals from falling water. Removable, sealed electronics module. Security link protects tape by releasing the probe if it becomes stuck in the well.

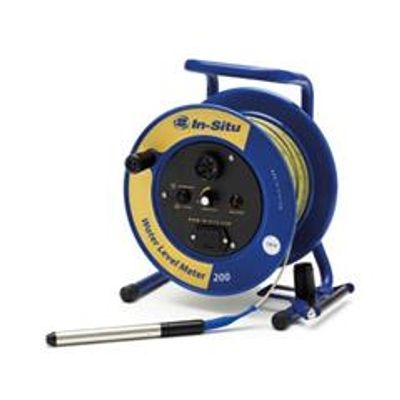

The In-Situ Water Level Meter 200 is the premier engineer-grade tape designed for groundwater professionals, with high-tensile steel tape and stainless steel conductors. This water level tape is ASME-certified and offers maximum longevity in the field, ideal for measuring depth-to-water in wells, boreholes, direct push equipment, and standpipes. Yellow tape is easy to read and resists stretching under loads of 127 kg (280 lbs). With static and drawdown modes, the Water Level Meter 200 can take static level readings and then switch to drawdown mode to perform low-flow and pump tests. Additionally, the IP68-rated probe can be submerged in depths of up to 300 m (1,000 ft) to determine the bottom of the well.
