Infastaub GmbH products

The pleated element filter INFA-LAMELLEN-JET AJL is a highly efficient aspiration filter for separation of dry, non-sticky dusts. Filters of this series achieve a maximum filter surface area on minimum space requirements because of their pleated filter elements (filter lamellas). The series is designed for volume flows of approx. 2,000 up to approx. 40,000 m³/h. The exchange of the filter elements is carried out fast and simply via a big frontal maintenance door.

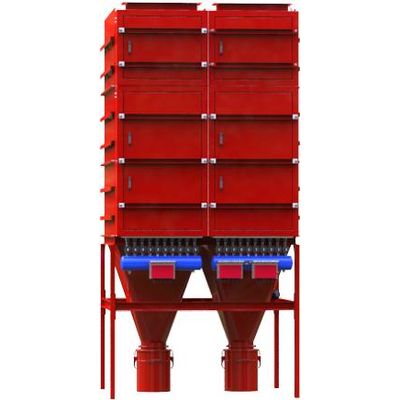

Pleated element filter of series INFA-LAMELLEN-JET AJL Duo are highly efficient aspiration filter for separation of dry, non-sticky dusts. Aspiration filters of this series achieve a maximum filter surface area on minimum space requirements because of their pleated filter elements (filter lamellas).The model AJL Duo with integrated secondary filter stage (particulate filter cassette in quality H13 according to DIN EN 1822) is used mainly in the chemical and pharmaceutical industry. The model AJL Duo with integrated secondary filter stage (particulate filter cassette in quality H13 according to DIN EN 1822) is used mainly in the chemical and pharmaceutical industry.

Top filter of series INFA-MAT type AM204 are sturdy filter units. They are cleaned mechanically. Cleaning of filter media with the shaking system ensures an effective removal of dust deposits on the filter pocket. Depending on the application, design of the filter is with or without fan. During cleaning, the fan is turned off automatically. Easy access to the filter media is possible because of a maintenance-friendly door. The filter pockets are fastened in a removable filter frame that can be entirely moved in case of filter change.

The Infa-Vario-Jet IPV is a fully automatic silo filter for dust separating of exhaust air from silos or containers, e. g. during filling by pneumatic pressure. Assembly and maintenance are easy to handle. The silo filter is characterized by durability and reliability. Among manifold optional features, a design for low temperature to -40 °C is as well available as a version for use when producing food. All components in contact with the product are approved according to regulations EU 1935/2004 and EU10/20

Cartridge filter of the series Infa-Jetron IPF (standing filter) are used for central dedusting of machines and workplaces It is designed for dry and little adhesive dusts. Alternatives out of different basic modules of this series permit a flexible adaption to the specifications of the process technology. The basic unit needs 1 m² floor area only. The filter cartridges are changed to the raw gas side in order to save height. Access to the filter cartridges is provided by a big door on the front side.

The INFA-MINI-JET familiy is a versatile circular filter program. Customer-specific designs are available due to individual constructions. Because of an optional hot gas design, pressure resistance and gas-tightness, the fully automated cartridge filters ensure the separation of dust and powder products as well from exhaust air as from process gases. During the filtration phase the cleaning of the filter cartridges is done in periodic intervals by pulses of compressed air (jet-pulse cleaning). The cartridge filter sizes cover a volume flow of 20 m³/h to 12,000 m³/h.

The cartridge filter INFA-VARIO-JET AJV is especially suitable for dedusting pneumatic conveying processes of bulk materials. All parts in contact with the product are manufactured of stainless steel serially. Because of the round construction, the cartridge filter is applicable for overpressure / low pressure up to +/- 0.5 bar. But this filter series can be used generally for all cases where a product / dust / air mixture continuously arises over a long period of time. It is also suitable for de-dusting of mechanical transporting and manufacturing processes.

Cassette filter for dedusting of sophisticated processes where toxic dusts or powders, e.g. API (active pharmaceutical ingredient).

Cartridge filter for dedusting of sophisticated processes where toxic dusts or powders, e.g. API (Active Pharmaceutical Ingredients).
