Innomar Technologie GmbH products

The "Innomar essential" SBP model is designed for use on small boats and uncrewed vehicles (USV / ASV / AUV). Its high ping rate, small footprint and ability to transmit sound pulses over a wide frequency band ensure excellent resolution and very good sediment penetration in sub-bottom data.

The "Innomar compact" model was designed for inshore surveys in shallow-water down to 400 metres water depth, but can also be used in coastal areas. Because of its small size and weight this system is convenient even on small boats. Controlled via Ethernet using any Windows based PC or laptop it is a user friendly and affordable design, too.

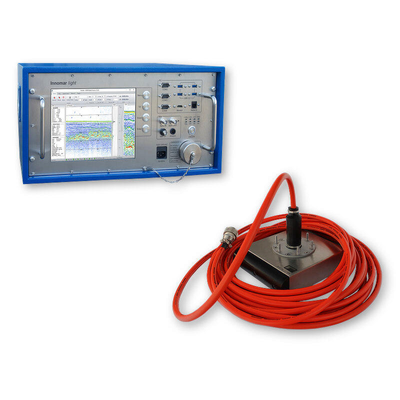

The "Innomar light" parametric sub-bottom profiler is designed for shallow-water applications inshore and near-shore at water depths down to 400 meters. This model acquires full-waveform data that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.

The "Innomar medium-100" parametric sub-bottom profiler is designed for offshore applications down to 2,000m water depth. The transducer can be either mounted over-the-side or in the hull. This SBP model acquires full-waveform data (24 bit) that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.

The "Innomar deep-36" parametric sub-bottom profiler is designed for offshore applications down to 6,000m water depth. This model is available in two versions. The basic version features heave and roll compensation while the "RP" version offers additional pitch compensation. The "Innomar deep-36" SBP acquires full-waveform data that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.

The "Innomar deep-15" parametric sub-bottom profiler is designed for offshore applications down to 11,000m water depth. This model features full motion compensation for heave, roll and pitch vessel movements. For best data quality the sound beam is electronically stabilized at transmit and receive. The picture shows the topside electronics (one transmitter unit and one receiver unit) and one of eight transducer sections. The "Innomar deep-15" SBP acquires full-waveform data that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.

The "Innomar compact-usv" model is intended to be used on uncrewed surface vehicles (USV / ASV). The high ping rate, a small footprint and the possibility of transmitting sound pulses over a wide frequency range ensure sub-bottom data with excellent resolution and very good sediment penetration. A user-friendly Windows data acquisition and system control software (SESWIN) is used for remote (Ethernet) operation. The "Innomar compact-usv" model acquires full-waveform data that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.

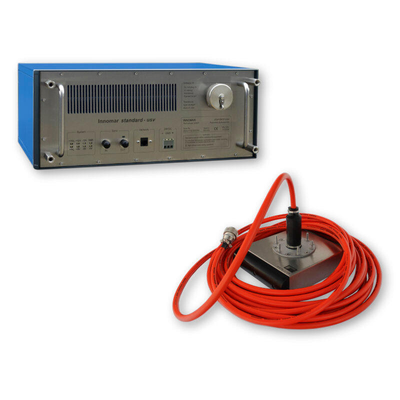

The "Innomar standard-usv" model is intended to be used on uncrewed surface vehicles (USV / ASV). The high ping rate, a small footprint and the possibility of transmitting sound pulses over a wide frequency range ensure sub-bottom data with excellent resolution and very good sediment penetration. Electronic beam stabilization across (roll) or along track (pitch) is used to compensate for wave-induced vehicle movements. A user-friendly Windows data acquisition and system control software (SESWIN) is used for remote (Ethernet) operation. The "Innomar standard-usv" model acquires full-waveform data that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.

With its four transducers, the Innomar "quattro" multi-transducer sub-bottom profiler is designed for applications which need very high data density in extremely shallow waters. These applications include pipeline and cable surveys, risk mitigation at offshore building sites or archeological surveys.

With its six transducers, the Innomar "sixpack" multi-transducer sub-bottom profiler is designed for applications which need very high data density in extremely shallow waters. These applications include pipeline and cable surveys, risk mitigation at offshore building sites or archeological surveys.
