Inrada Group products

Suitable for heavy working conditions in open air: neutral, aggressive, explosion hazardous.

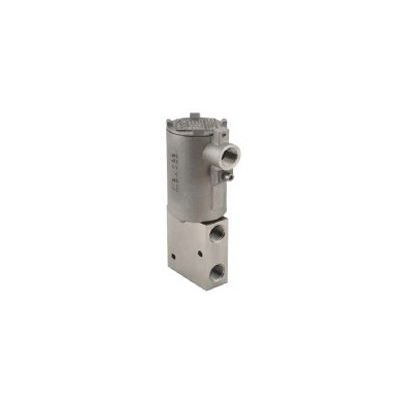

Size: 1/4` - 1/2`. Capacity: 1/4` = 8600 l/min, 1/2` = 30200 l/min. Materials: SS 316L body, SS 316L solenoid. Pressure range: 0 - 12 bar. Temperature range: -55 - +90°C. Ambient: -55 - +60°C. Connections: NPT, BSP, NAMUR.

Especially suited for the control of large actuators. Suitable for heavy working conditions in open air: neutral, aggressive, explosion hazardous. SIL 4 approval.

Size: DN4 - DN150. Materials: SS 316L, Hastelloy. Diaphragms: EPDM, TFM (FDA & USP approved). Operation: manually and pneumatically operated, motorized. Connections: Butt weld ends, tri-clamps, sanitary clamps. Surface roughness: Ra~6,3µm - 0,25µm polished and/or electrolytically polished. Temperature range: Max. 150 °C.

Size: DN10 - DN100. Materials: SS 316L, Hastelloy. Diaphragms: EPDM, TFM (FDA & USP approved). Operation: manually and pneumatically operated, motorized. Outlet connection: Butt weld end, tri-clamp, sanitary clamp. Surface roughness: Ra~6,3µm - 0,25µm polished and/or electrolytically polished. Temperature range: max. 150 °C.

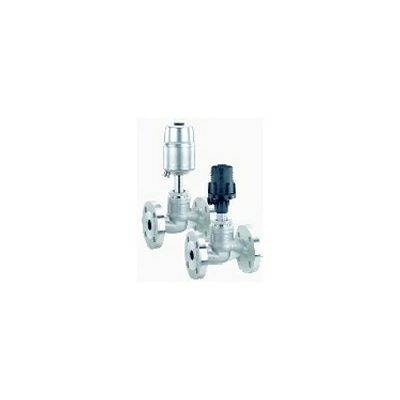

Size: DN15 - DN150. Materials: cast iron, cast steel, SS. Seat materials: PTFE, Viton, steel/steel. Pressure range: max. 40 bar. Temperature range: max. 220 °C. Connections: flanges DIN, ANSI.

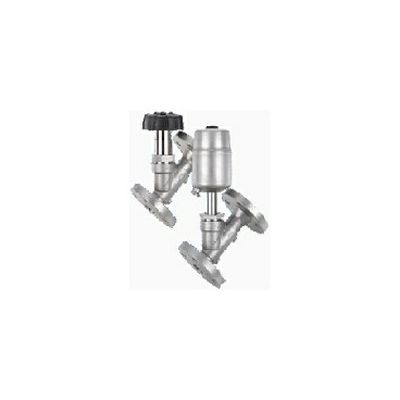

Size: DN6 - DN80. Materials: SS, gietbrons. Seat materials: PTFE, Viton, steel/steel. Pressure range: max. 25 bar. Temperature range: max. 220 °C. Connections: male and female threaded, weld ends, flanged. Operation: manually and pneumatically operated.

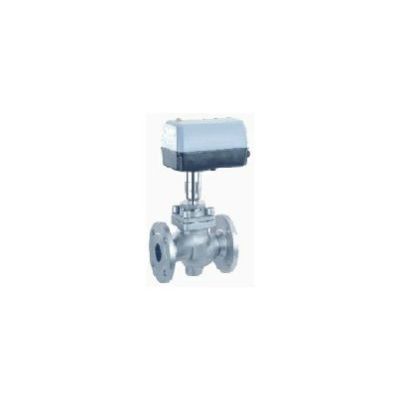

Size: DN25 - DN80. Materials: cast iron, cast steel, SS, cast bronze. Seat materials: PTFE, Viton, steel/steel. Pressure range: max. 25 bar. Temperature range: max. 180 °C. Input voltage: 24 V. Input signal: 4 - 20 mA. Connections: female threaded, flanges, weld ends. Optional: Profibus DP, Devicenet connection.
