Intuitech, Inc. products

Designed to meet the requirements of many conventional filtration pilot applications, this standard module can be used for granular media filtration (GMF) or granular activated carbon (GAC) contacting.

Designed to meet the requirements of many ozone pilot applications, this standard module can be used stand-alone or integrated into a process train with other filtration technologies.

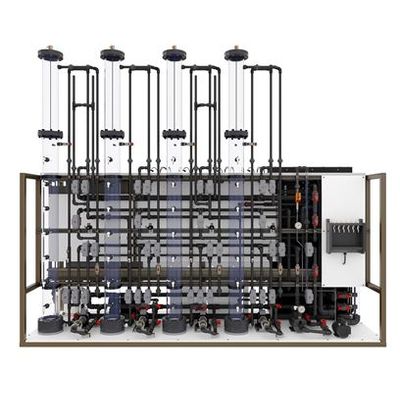

Module consists of four constant rate filters with individual feed pumps, an air scour system, and a backwash system. Each filter is independent with automatic flow control. The air scour and backwash systems are shared by all filters, and also utilize automatic PID flow control. Backwashing is automatic and is initiated manually by an operator in the manual mode, or on runtime, headloss, or effluent turbidity in the automatic mode. Only one filter may be backwashed at a time. Other features include automatic data logging of key parameters, remote monitoring and control using a standard web browser, and email alarm notification.

Module consists of four constant rate filters with individual feed pumps, and five chemical pumps. Each filter is independent with automatic flow control. The air scour and backwash systems are shared by all filters, and also utilize automatic PID flow control. Chemical feed pumps are flow paced with direct entry of chemical dosage. Each chemical pump can be selectively paced to any of the filter feed flows, the combined filter feed flow, or the backwash flow. An improved backwash process is included, providing superior performance when operating biological filtration processes. Backwashing is automatic, and initiated manually by an operator in the manual mode, or on runtime, run volume, headloss, or effluent turbidity in the automatic mode. Only one filter may be backwashed at a time. Other features include automatic data logging of key parameters, remote monitoring and control using a standard web browser, and email alarm notification.

Automatic data logging of key parameters, remote monitoring and control using a standard web browser, and email alarm notofication.

3 independent gravity fed filter columns. Each filter is equipped with the instrumentation to measure and monitor the various process variables.

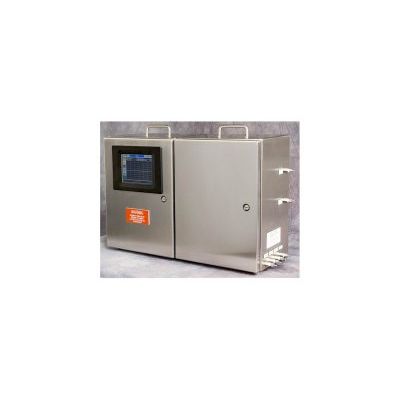

Designed to meet specific customer requirements, Intuitech`s custom ozonation pilots safely handle the somewhat problematic management of ozone gas.

Designed to meet specific customer requirements, Intuitech`s custom Reverse Osmosis pilots provide flexibility where "off the shelf" units prove restrictive. Reverse Osmosis pilots are often utilized for brackish and seawater desalination studies.

Designed for various membranes, these custom Ultra Filtration (UF) pilot plant modules are fully automated for unmanned operation and have an impressive pilot study resume.

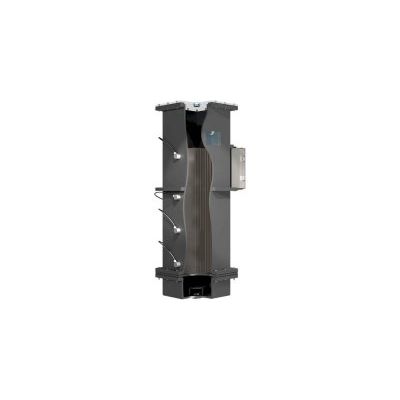

Custom electrolytic cell pilots include silver plates that are separated into four chambers with independent flow control for each chamber allowing flexible operation.
