Ionicon Analytik Ges.m.b.H. products

The new FUSION PTR-TOF 10k sets the benchmark for the future of PTR-TOF instruments and combines all advantages only genuine IONICON PTR technology can offer: Ultra-clean FUSION reaction chamber, Market-leading detection limits < 200 ppqv, Fast-SRI ion source for nearly instant reagent ion switching, TRU-E/N certified ion-chemistry quality.

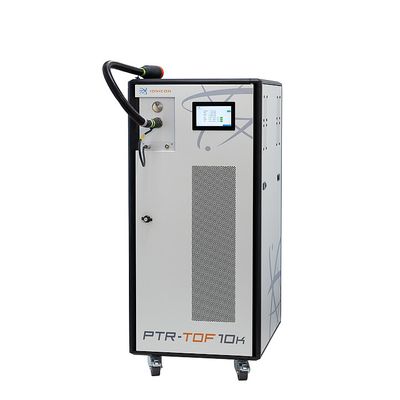

The new PTR-TOF 10k offers the highest mass resolution available combined with original IONICON TRU-E/N PTR technology. Powered by the new ioniTOF 10k, this trace VOC analyzer features an exceptional mass resolution of 10000-15000 m/Δm. The PTR-TOF 10k has been developed with challenging samples and complex gas matrix in mind, where the additional insight provided by the high mass resolving power are a major asset for the analysis. It enables the separation and identification of substances which no other lower resolution PTR-TOF is capable of.

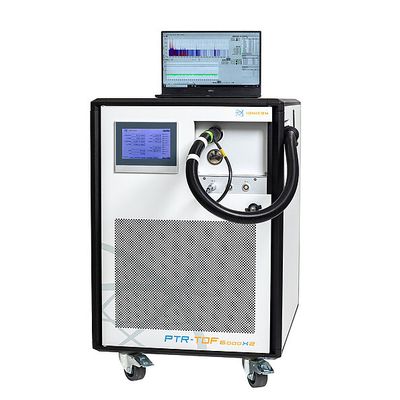

The PTR-TOF 6000 comprises a high-resolution ioniTOF and IONICON’s exclusive PTR technology with TRU-E/N™ for a powerful PTR-TOFMS experience. The X2 technology abord this instrument combines the latest generation of the ION-BOOSTER funnel as well as the hexapole ION-GUIDE. The ion funnel focuses the ions into the hexapole ion guide which results in nearly lossless transmission of an extremely focused ion beam into the TOF mass spectrometer. This increases the sensitivity and also improves the instrument’s mass resolving power.

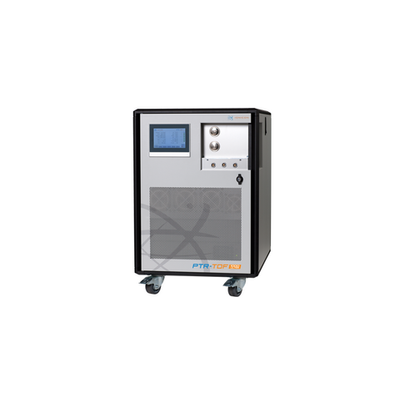

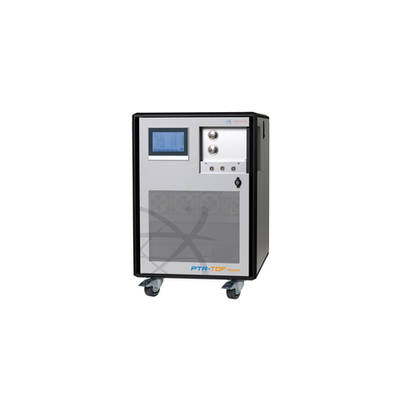

The PTR-TOF 1000 now is ultra-sensitive. Expect 10x more sensitivity than the PTR-TOF 1000 thanks to the revolutionary ION-BOOSTER funnel technology. The PTR-TOF 1000 ultra is the new benchmark for a robust and compact real-time volatile organic compounds (VOC) analyzer. Based on the successful PTR-TOF 1000 platform, the PTR-TOF 1000 ultra offers all benefits of an affordable, small and light PTR-TOFMS instrument, complemented by an outstanding sensitivity. Why compromising on any of these benefits? Start into the world of time-of-flight based PTR-MS instruments with the PTR-TOF 1000 ultra and request a quote now! Are you looking for more resolution and with the X2 option, also more sensitivity? Consider the PTR-TOF 4000.

IONICON is known for PTR-MS mass spectrometry since 1998. The first TOF based PTR-MS analyzer was launched in 2007 and soon became a huge success, predominately in the high-end academic research market. We began our own TOF developments with the aim to build a robust and flexible TOF platform for our own production as the world’s leading PTR-TOFMS producer but now we also strive to let others benefit from our customizable, affordable, open-architecture ioniTOF platform.

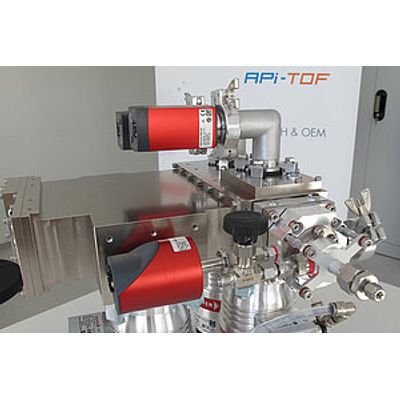

Atmospheric Pressure Interface Time-of-Flight (APi-TOF) Instrument for Detection of Positive or Negative Ions based on the ioniTOF platform and Hexapole ION-GUIDES. The IONICON ioniAPi-TOF is a modular and robust Time-of-Flight mass spectrometer designed for the detection and mass analysis of ions generated at atmospheric pressure. The ioniAPi-TOF atmospheric pressure interface consists of a critical orifice for contact free sample introduction, two hexapole ION-GUIDEs for high ion transmission efficiency over a broad m/z range and a high performance pump for high sample throughput. This interface is coupled to an orthogonal TOF analyzer equipped with an ion mirror for increased mass resolution. Our next generation TOF power supplies allow fast and repeatable switching between positive and negative polarity.

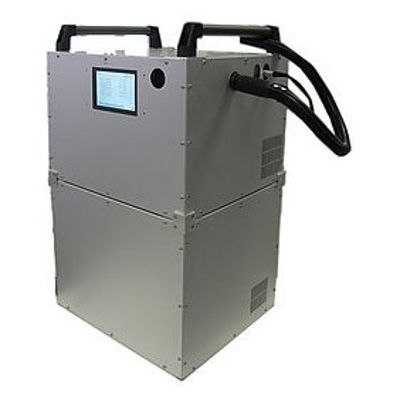

The PTR-TOF QB is the ultimate real-time VOC monitor for mobile lab deployment. Based on its lightweight frame and the unique stackable 19 inch cube "QB" design, it easily fits in the trunk of a passenger car or mobile measurement van. With less than 90 kg in total and the ability to split the instrument in two, each of the cubes weighting less than 50 kg, the monitor can easily be transported and set up in virtually any place. This clever feature enables an installation of the PTR-TOF QB on top of each other or the cubes sitting side by side. This provides enormous flexibility concerning the system's footprint or height profile and allows to operate the mobile VOC monitor in nearly all space-restricted environments.

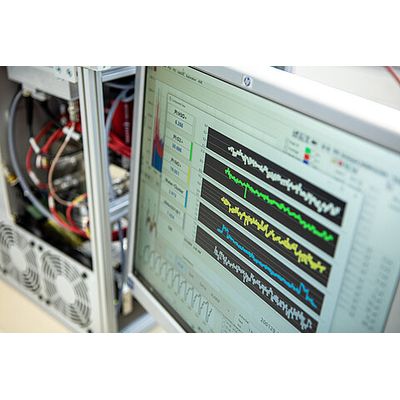

We combine the advantages of our technology with an easy-to-use interface and an automated system software in order to create robust automated VOC analyzers for industrial production sites.

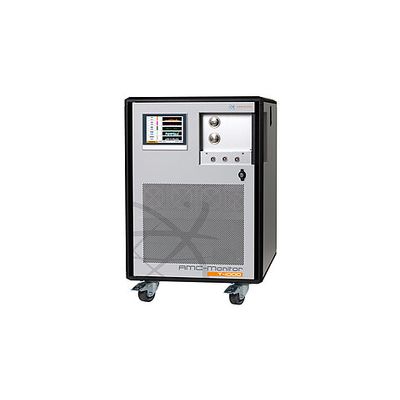

The all-in-one analyzer for FOUP, fab and clean-room environment AMC monitoring in the semiconductor industry. The AMC-Monitor is a modular and flexible platform for Airborne Molecular Contaminations (AMC) monitoring in semiconductor applications such as: FOUP analysis with a focus on VOC and condensables incl. full integration with Pfeiffer Vacuum APA 302 pod analyzer. Clean-room monitoring in fabrication plants: automated detection of AMC at multiple sampling points with an integrated multiplexing system, directly in the fab at variable locations and even at the tool-level. Optionally fully integrated aboard the Pfeiffer Vacuum AMPC fab analyzer. Monitoring of outside and intake air: automated fence line monitoring incl. alarm levels, up- and downstream filter testing.
