IRIS Instruments products

The VIP series of Electrical transmitters are purposely designed for deep induced polarisation or Resistivity sounding investigations. The Vip injects a regulated current into the ground. Predominantly used as part of mineral exploration studies, the VIP series include three systems with different power specifications. This transmitter is generally used together with V-Fullwavers or Elrec Pro receivers. To simplify operation, the instrument manages the injection current and voltage automatically. When starting, the VIP automatically operates several safe tests to ensure that the device is not misused.

The VIP series of Electrical transmitters are purposely designed for deep Induced Polarisation or Resistivity sounding investigations.
The VIP 5000 internal microprocessor is capable of excellent current regulation in almost any load. Predominantly used as part of mineral exploration studies, the VIP series include three systems with different power specifications. This transmitter is generally used together with V-Fullwavers or Elrec Pro receivers. To simplify operation, the instrument manages the injection current and voltage automatically. When starting, the VIP automatically operates several safe tests to ensure that the device is not misused.

The VIP series of Electrical transmitters are purposely designed for deep Induced Polarisation or Resistivity sounding investigations. The VIP 10000 internal microprocessor is capable of excellent current regulation in almost any load.

The TIPIX 2200 is a transmitter purposely designed for deep Induced Polarisation or Resistivity sounding investigations. This transmitter is generally used together with V-Fullwavers or Elrec Pro receivers. This entry-level instrument has been designed for an ease of use and for a good productivity together with a strong protection against misuse. This very robust device has proven to be reliable even in very cold weather (up to -40°C) or in wet environment. It is able to inject up to 2200W in the soil and to inject up to 13A, so that it is suitable, even on conductive soils, to measure resistivity and IP at medium range depths. It is powered by standard generator.

The TIPIX 3000 is a transmitter purposely designed for deep Induced Polarisation or Resistivity sounding investigations. This transmitter is generally used together with V-Fullwavers or Elrec Pro receivers. This entry-level instrument has been designed for an ease of use and for a good productivity together with a strong protection against misuse. This very robust device has proven to be reliable even in very cold weather or in wet environment. It is able to inject up to 3000W in the soil and to inject up to 13A, so that it is suitable, even on conductive soils, to measure resistivity and IP at medium range depths. It is powered by standard generator.

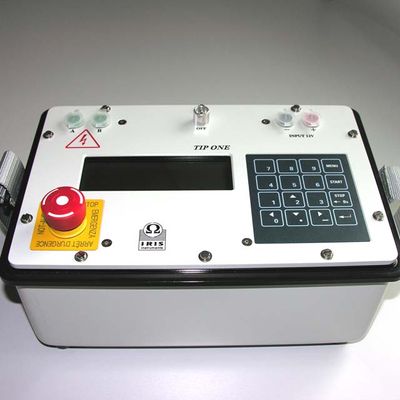

The TIP One is purposely designed for shallow induced polarisation or Resistivity sounding investigations. The TIP One injects a regulated current or regulated voltage into the ground via a simple 12V battery. This transmitter is generally used together with V-Fullwavers or Elrec Pro receivers. To simplify operation, the instrument manages the injection current and voltage automatically. When starting, the TIP One automatically operates several safe tests to ensure that the device is not misused.
