IS SaveEnergy AG products

The SaveEnergy dry electrostatic precipitator is a high-capacity separator that was developed with the specific aim of achieving minimal operating costs and maximised separation efficiency with an availability of around 99%.

The SaveEnergy flue gas condenser is a highly efficient system that recovers the sensitive, latent heat from polluted flue gas. The heat from the flue gas is extracted via the injected process water. In doing so, the sum of all water droplet surfaces creates a heat exchanger. This results in heat exchange surfaces that are the size of several football pitches. The water droplets continuously reform. The SaveEnergy heat exchanger (water droplets) can neither become soiled nor corroded. This results in low-maintenance, robust operation and sets top standards regarding availability and durability.

In the SaveEnergy wet electrostatic precipitator, the solids are separated from the flue gas by the impact of an electric field. The electrically neutral dust particles are charged by emission electrodes. The impact of the electrical forces transports the particles towards the precipitation electrode and thereby discharges them from the gas flow.

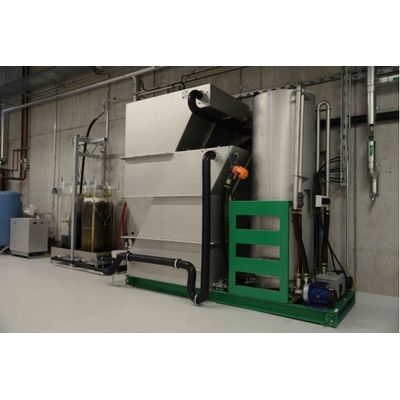

The SaveEnergy water treatment system cleans the condensate from the solids. The amount of contained solids is less than 10 mg/l after the SaveEnergy water treatment system. Part of the cleaned condensate is returned to the flue gas condenser as process water. The surplus condensate is directed into the sewage system. The SaveEnergy water treatment system is fully automatic and requires very low maintenance.

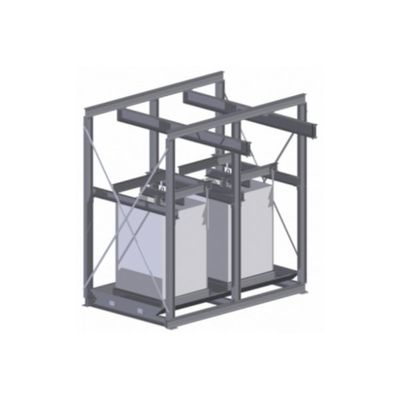

The SaveEnergy sludge treatment unit is a simple, static component which is used in conjunction with the SaveEnergy water treatment unit. The filter sludge that comes from the SaveEnergy water treatment unit is pumped into a single-use Big Bag made from a finely woven material. The finely-woven fabric retains the solid particles, whilst allowing the water to flow through the bag.
