Download Reliability Workbench and access our comprehensive prediction module. Predict the reliability of electronic and mechanical components using MIL-217, Quanterion 217 Plus, SN29500, IEC 61709, FIDES, Telcordia TR/SR, IEC TR 62380, GJB299C and NSWC.

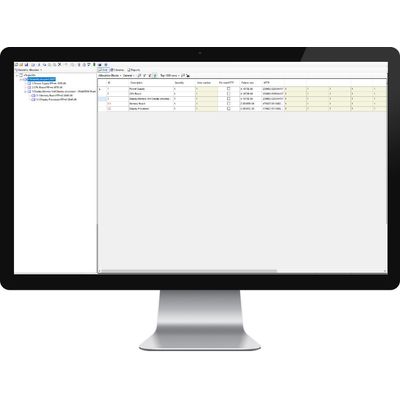

Download Reliability Workbench and dive into our powerful FMECA module. Fast system construction. Hierarchical failure mode and effect structure. Multiple formats such as FMEA and DFMEA. Standard and custom reporting. Supports multiple industry standards such as MIL-STD-1629A, BS 5760 Part 5, GJB 1391-92, AIAG & VDA, SAE J1739, ARP5580. Highlights high risk items via RPN or criticality analysis. Directly link to fault trees, RBDs and hazard logs. Tested and certified by SGS-TÜV as suitable for safety analyses according to ISO26262. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.

Download Reliability Workbench and access our powerful RBD module used in high profile projects at over 1200 sites worldwide. Quickly build models using drag and drop and libraries. Fast and accurate system analysis. Fully integrated with FMEA and Markov analysis. Automatic conversion to fault trees. Importance and common cause analysis included. No limit to the number of blocks or hierarchical levels. Multiple standards support including ARP 4761, IEC 61508, ISO 26262. Integrated failure data libraries. Directly link to hazard logs for verification. Import/export facilities to databases and spreadsheets. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.

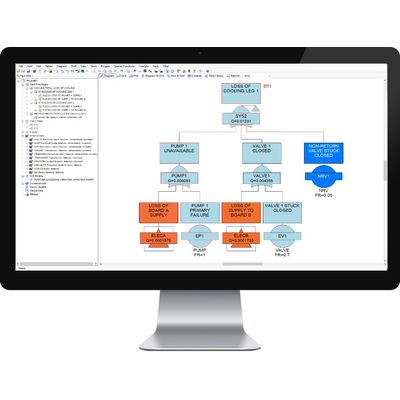

Download Reliability Workbench and access FaultTree+, our powerful fault tree analysis software used in high profile projects at over 1800 sites worldwide. Quickly build models using drag and drop and libraries. Fast and accurate system analysis. Fully integrated with FMEA, event tree and Markov analysis. Importance, common cause and confidence analysis all included. No limit to the number of gates, events and hierarchical levels. ISO 26262 certified. Multiple standards support including ARP 4761, IEC 61508, ISO 26262. Integrated failure data libraries. Directly link to hazard logs for verification. Import/export facilities to databases and spreadsheets. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.

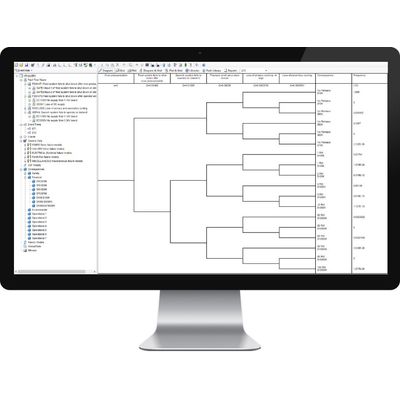

Download Reliability Workbench and access our powerful event tree module. Quickly build models using drag and drop and libraries. Fast and accurate risk analysis using cut set methodology. Fully integrated with fault tree analysis. Models risk importance with full dependency analysis. Handles large complex and inter-related event trees. Integrated failure data libraries. Multiple consequence categories supported. Import/export facilities to databases and spreadsheets. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.

Download Reliability Workbench and dive into our powerful Weibull module. Analyze historical failure data and produce failure distributions that may be linked to fault tree and RBD structures. Analyze historical failure data including suspensions. Weibull 3-parameter and exponential distribution fitting. Directly link to failure models for system fault tree and RBD analysis. Reliability, PDF and failure rate plots. Model the ageing characteristics of components. Build Weibull libraries for generic equipment types. Import/export facilities to databases and spreadsheets. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.

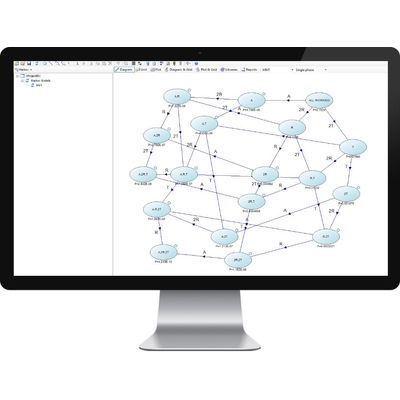

Download Reliability Workbench and access our powerful Markov module. Predict the reliability of systems with strong dependencies using our powerful analytical calculation engine. Quickly build models using drag and drop. Division of analysis into separate phases. State attribute editing via easy-to-use dialogs. Data verification for consistency checks. Time-dependent transition rates modeled. Global parameter facility for repetitive data. Calculation of a wide range of probabilities and frequencies. Graphs and plots showing time-dependent results. Fully integrated with fault tree and RBD analysis. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.

Download Reliability Workbench and access our reliability growth module and analyze the reliability trends in your system. Quickly build growth models using drag and drop and libraries. Access your reliability data using our extensive import facilities. Power Law (including grouped failures) and Crow Discrete models. Automatic or manual data fitting. Laplace trend (U) critical value and Chi-squared critical value. Display data in a variety of plot formats. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.

Download Reliability Workbench and access our reliability allocation module and analyze the reliability trends in your system. Reliability allocation apportions a system target reliability amongst sub-systems and components. It is a useful tool at design stage for determining the required reliability of equipment to achieve a given system reliability target.

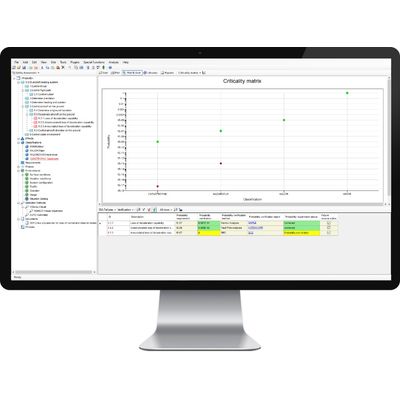

Download Reliability Workbench and access our powerful safety assessment module. Record system hazards and directly link to the fault tree, RBD or Markov models used for probability verification.
