IVC Pumps Private Limited products

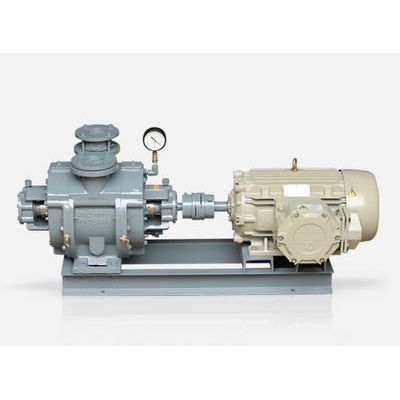

IVC- Single Stage Watering Vacuum Pumps Develop vacuum of 710 mm of HC at Close Suction Considering 32°C Water Temp., 760 mm of HG ( 1002 mbar } Barometric Pressure and ambient suction Temp of 35 OC with a mean in humidity of 50 %. This Pump Also Use as Liquid Ring Compressor. The Pump Compressed Air ( Gas) Free From Oil and Obtain up to 1.5 Kg /Cm2 Discharge Pressure. Inlet Water and Sucked Air { Gas ) and led into Water Separator. The Air Separate From Water and Air is
takeout to the system.

IVC- Two Stage Watering Vacuum Pumps Develop Maximum vacuum of 720 mm of HG Vacuum at Close Suction Considering 32°C Water Temp,. 760 mm of HG ( 1002 mbar ) Barometric Pressure and ambient suction Temp of 35 OC with a mean in humidity of 50 %.

OUR MONOBLOCK VACUUM PUMP CAN ASSEMBLE ON STANDARD ELECTRIC MOTOR, 3 PHASE, FOOT CUM FLANGE ELECTRIC MOTOR} IVC- Close Couple/Mono Block Singe Stage Watering Vacuum Pumps Develop vacuum of 710 mm of HC at
Close Suction Considering 32°C Water Temp., 760 mm of HC (1002 mbar) Barometric Pressure and ambient suction Temp of 35 OC with a mean in humidity of 50 %. We Develop Mono Block / Close Couple Type Vacuum Pump which are VERY Economical, MONOBLOCK Vacuum Pumps Are Very Compact In Design; They Can Be Easily Taken From One Place To Another. It Comprise Sturdy Casing, Suction & Deliver Nozzles and Foots and Also Easy To Assemble.

Liquid Ring Vacuum Pump are also Known Water Ring Vacuum Pump. Liquid Ring Vacuum Pumps are Most versatile and popular types of vacuum Pump for All Type Industrial Application, among the All Availability of Vacuum Pumps. Water Ring Vacuum Pump Require a Water or Any Liquid Media to Create Vacuum in Any Industry. It is Positive Displacement Pump. Chemical, Electrical Power. Environmental. Food & Beverage Processing and Packaging, Marine. Mining, Oil & Gas, Pharmaceutical, Pulp & Paper, And Textiles Etc Industry Use Water Ring Vacuum Pump. Following Types of Liquid Ring Vacuum Pump Available with US.

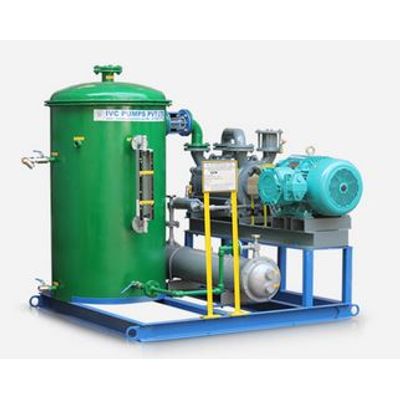

The IVC Full Recovery Water Ring (liquid Ring ) Vacuum Pump Systems offer Total Re Circulation of Service Water ( Liquid ). In This System the Service Water is Recirculated in Close Loop System through Heat Exchanger. Which Removes heat of Compression. IVC Fully Recover Water Ring Vacuum Pump Systems offer total Re Circulation of the Service Water. System are Available in Single & Two Stage Vacuum Pump and Can be offered in a wide Variety of materials for through Application. This System Recover of Water Sealed Water Ring Vacuum Pump Systems Recover and Re Use Close to 100 % oftheSeak Water.

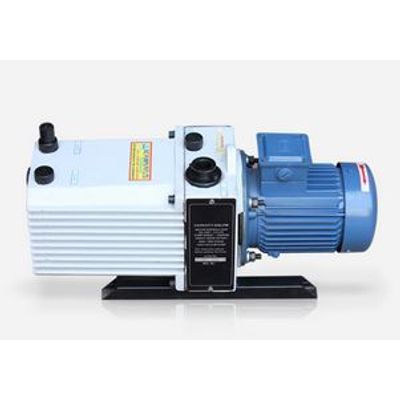

Oil Seal Rotary High Vacuum Pump Also Called Oil Immersed Rotary Vane Vacuum Pump. The Rotor. With Two Springs Loaded Vanes Is Mounted Eccentric in The Stator Body, As The Rotor, Rotated The Vanes Sweep The Crescent Shape Valve Which Prevents Back Flow Of Air. Our oil Sealed Rotary High Vacuum Pumps Are Available in Single & Double Stage, V Belt Driven Type And Also Air & Water Cooled Model Also.

The Vacuum Pump of the IVOL Series ate Single Stage. Oil Lubricated Rotary Vane Vacuum Pump with Oil Re-Circulation System. The Lubricant is rated for continuous operation at high intake pressure so that pump may be used in a versatile manner in most rough Vacuum Application. They ate used for Suction of air also in presence of water vapour and for continuous industrial use.

IVOM Series Pumps Ate an Outcome of Excessive Design Programme Based on First Hand Principles and in-Detailed Analysis of Each Component Thereby Making It A World Class Product. These Pumps Are Designed to Provide Consistent Vacuum Even at Continual Operations. The Oil Used Will Act as A Sealant and As A Lubricant.

Construction of Vacuum Booster Compressor involves Two Counter Rotating Rotor { Lobe ) with a Special Contour. These Rotate with a Very Finite and Sharp Clearance and without any Physical Contact, variance in design offers Twin Lobe Booster in air cooled or water-cooled execution. The   Booster are   Relatively Consume   Less Power and   Deliver High Performance. They provide and
improvement in vacuum of the Order of 0.001 Torr. They Generate Higher Pumping Speeds and That too at Low Pressure. The Boosters are used in series with any Vacuum Pumps Like Watering, Oil Seal and Dry Type Or Ejector.  The Booster are help to achieve a reduce Downtime for Vacuum Machine. They are Properly installed and Maintain Well, they provide years of Uninterrupted Service.

Twin Lobe Roots Blower available for flow rates from 60 M3 / Mr to 7.718 M3 / Hr to Working Pressure upto 1 Kg / Cm2. Roots Blower are Low Pressure High Volume Positive Displacement Machine. These Machine Operate on Differential Pressure and Constant Volume Characteristic Our Range Spans over 14 Air Cooled and S Water Cooled Models. These Compressors are designed in such a way that the same can have vertical or horizontal air flow. Further, the Compressor with its standard accessories is being supplied as one compact unit which makes it very easy to install. It is also available as bare machine for replacement Blower are Suitable for Both Vacuum & Pressure Application. Pressures Note Developed inside the Blower by the demand of the System (Application ). Differential Pressure, therefore, varies to meet the Load Condition and System Resistance.
