iWater Wassertechnik GmbH & Co.KG products

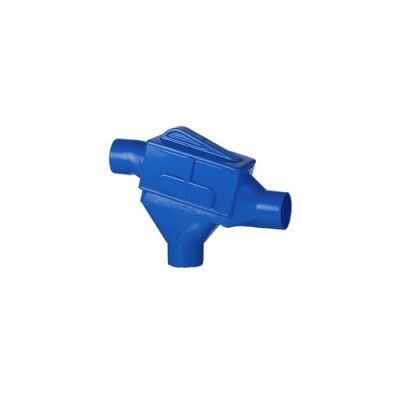

Rainwater filter according to DIN 1989-2, Type C . It is suited to be installed with roof surfaces of up to 350 m² (at 300 l/sxha). Height difference between inflow and outlet: 300 mm.

Rainwater filter according to DIN 1989-2, Type C. The CisternFilter DN 100 is designed to be installed within the rainwater cistern. It has a two-step filtration with two stainless steel filter surfaces stacked on top of each other. In the first step, large dirt particles are filtered out from the sieve surface into the sewer. The lower filter separates the finer dirt particles from the rainwater. These fine particles are simply flushed away into the sewer due to the steep angle and smooth surface structure of the fine filter. The filter as a whole can be comfortably cleaned with an optional backflush device. The CisternFilter is suited for roof surfaces of up to 150 m². Height difference between inflow and outlet: 117 mm.

The iBlock concrete tank consists of a monolithic base element with 2 PVC shaft chucks for inflow and outlet in the fitted shaft ring, and 2 PVC underground pipes for overflow siphon and system cables grouted into a chuck cone. iBlock 13000 comes with an additional shaft ring to mount onto the monolithic base element.

Rainwater storage tanks made of PE in a monolithic structure, fully equipped. Very good statics due to its special ribbed construction and use of high-molecular blue PE. The PE-FilterTank is fully equipped with a cistern filter, floating extraction, smoothing inlet, and overflow siphon with safeguard against small animals. The height difference to the ground level is compensated with a dome shaft and ensures a frost-protected installation. Connections for intake, outlet and supply pipe in DN 100 norm ready to be plugged in.

Multi-level electric underwater pump for wells of 3" or larger. The pump are capable of developing high discharge heads and performances. Suited for conveying, disseminating and pressure pumping water in private and industrial water systems. Also suited for supplying autoclaves, fire safety and wash systems as well as irrigation systems.

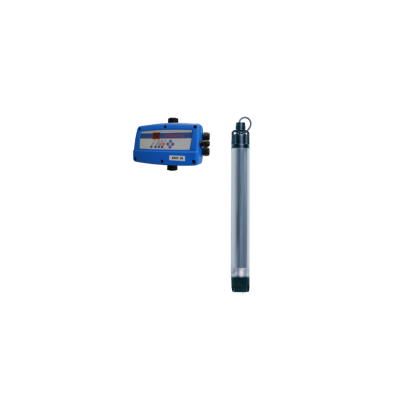

Immersion pressure pump 4" made of stainless steel with dry-run protection. inkluding PWM 230 speed controller for starting and stopping the pump on demand and for constant pressure of the water supply. with 8 rotors. calm operation corrosion-resistant. Suction below. Particle size bis 2 mm for watering purposes and water supply from wells and tanks. Protection class IP 68. Connection cable 15 mm with plug

InoxCyclone sand separators are used for sandy water. The filter is entirely made of stainless steel. The sand is separated from the well water with the principle of gravity and is collected in the filter. The sand collector can be easily cleaned by opening the ball valve.

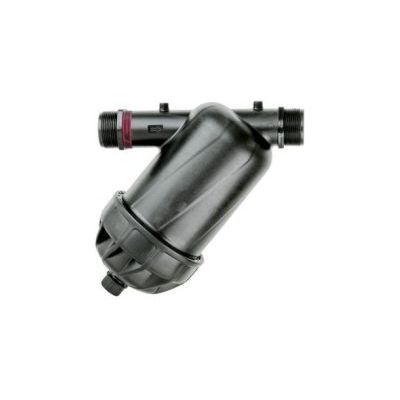

Disc filters protect the system components of the water supply system from disfunctioning which could result from impurities in the well water. Contrary to standard sieve filters, the iWater disc filters have a much larger filter surface which enhances the filtration and reduces the number of maintenance intervals. The filter casing is made of plastic, the filter inlay is composed of stacked discs, the maximum pressure is 8 bar, the maximum temperature of the filtered liquid is 60 °C. Easy handling and cleaning of the filter inlays due to a screw-on cap. The filter fineness is 0.13 mm.
