iBlock - Concrete Tank

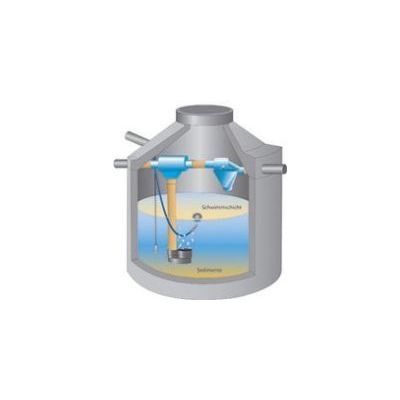

The iBlock concrete tank consists of a monolithic base element with 2 PVC shaft chucks for inflow and outlet in the fitted shaft ring, and 2 PVC underground pipes for overflow siphon and system cables grouted into a chuck cone. iBlock 13000 comes with an additional shaft ring to mount onto the monolithic base element.
Most popular related searches
concrete tank
underground pipe
rainwater storage
grout
grouting
PVC pipe
steel tank
rainwater tank
overflow system
rainwater
- The chuck cone and the base element (or additional shaft ring) are to be grouted on-site.
- Steel concrete tank with concrete quality C35/45 (B45) in a circular monolithic construction.
- Chuck cone and shaft cover accessible, class A15, shaft access Ø 600 acc. to DIN 1989-3 (vehicle accessible covers can are available upon request).
- Inflow and outlet DN 100 plug-in ready, with opening for supply lines DN 100.
- The underground pipe for connection to the basement should be equipped with a suitable wall bushing from ewuaqua`s product portfolio, since otherwise water might enter the basement. The pipe has to be installed with a continuous grade towards the tank.
