J Flow Controls products

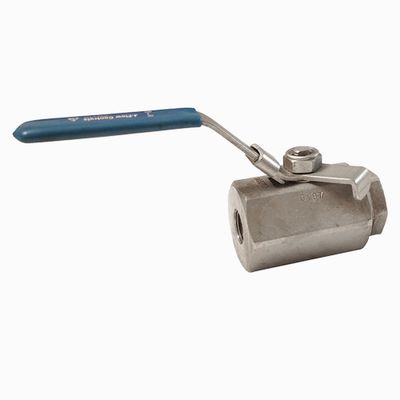

Body and end caps high quality investment cast. Available in Stainless Steel and Carbon Steel. Blow-out proof stem design. Screw-in retainer design provides extra body strength and lowers leaking possibility. Pressure rating: 2000 psi wog; 150 psi with saturated steam.

Special 360° all around welding design to prevent external leakage. Body and end caps high quality investment cast. Available in Stainless Steel and Carbon Steel. Blow-out proof stem design. Fire safe design. Includes fire-safe lip, graphite seals and anti-static devices. Pressure rating: 2000 psi (wog) (1/4″ to 2″); 1000 psi (2-1/2″ to 4″); 200 psi with saturated steam.

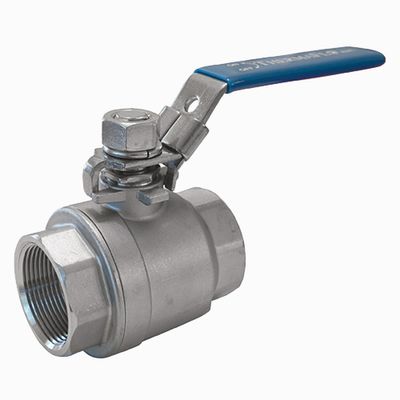

1000 psi two piece full port ball valve. Adjustable packing, silicone-free. Blow-out proof stem. Anti-static stem.

Full port. Locking function. Available in Stainless Steel (CF8 or CF8M). 600 (CF8) / 1000 (CF8M) psi (wog). STEP Files now available under the Documentation Tab.

Working pressure of 3000 psi (wog). Adjustable packing, seal-welded body. Silicone-free, blow-out proof stem. MTRs available. NACE MR0175.

ISO 5211 direct mounting pad. 1000 psi. Live-loaded packing. Blow-out proof stem. Silicone free. MTRs available. STEP Files now available under the Documentation Tab.

Direct mount; LDAR compliant ISO-15848-1. UL certified. CRN available. Full port. 2160 psi (wog). STEP Files now available under the Documentation Tab.

1000 psi, tri-clamp valve with 20Ra interior finish. 3A certified. ISO 5211 direct mounting pad. Cavity-filled. MTRs available.

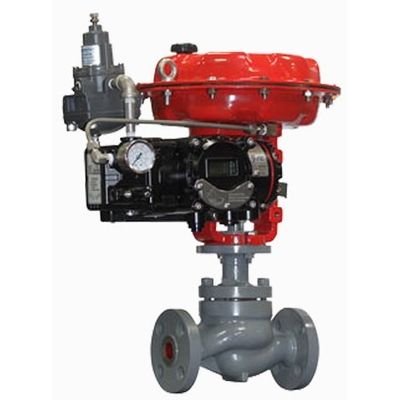

Flow characteristics: linear, equal percentage & modified percentage. Contoured trim (thread and quick change trim). Contoured soft seat trim. Tendril (multi-hole, multi-stage) trim. MTRs available.

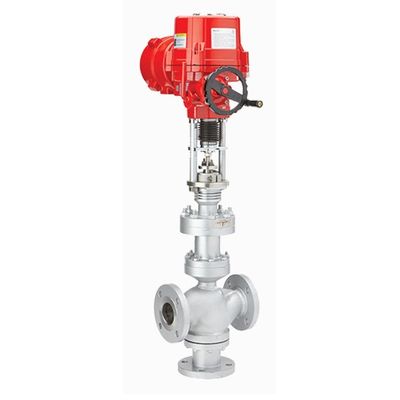

Globe 3-way mixing and diverting valve. Single seated top guide and bolted bonnet. Flow characteristics: linear, equal percentage and modified percentage. MTRs available.
