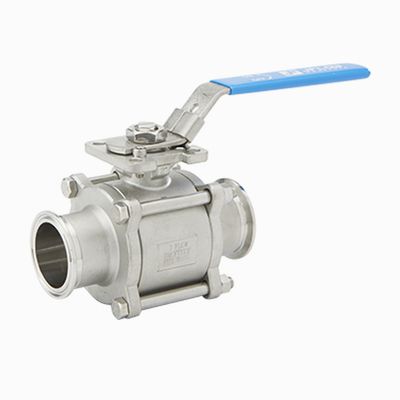

JFlow Controls - Model DM7300 Series -Sanitary Three Piece Ball Valve

• 3A certified
• Body and end caps quality investment casting
• ISO 5211 mounting pad
• Adjustable stem packing
• 3A certified
• 20Ra finish
• Cavity filled and non-cavity filled
• Available in Stainless Steel
• Blow-out proof stem design
• 100% air tested under water at 80-100 psi
• Working pressure of 600 (2-1/2″ – 4″); 800 (1-1/2″ – 2″); 1000 (1/2″ – 1″) psi
• FDA Viton O-Ring
• Locking function
• 6 bolts and nuts for 4″ valve

SIZE

• 1/4″ – 4″

BODY & TRIM MATERIAL

• 316
• Alloy 20
• Duplex
• Monel

PACKING MATERIAL

• PTFE
• Graphoil
• TFM

SEAT MATERIALS

• Teflon
• TFM
• TFM 4215

PORT

• Full

END CONNECTIONS

• Tri-clamp
• BW
• Tube

TEMPERATURE RANGE

• -20°F to +600°F

• Spring return (dead man) handle
• Cavity-filled and non-cavity filled
• Tube ends
• Polish to customer’s specifications
• Limit switch box with handle
• Automation applicable
• Hastelloy C
• V-ball for control valve in 15°, 30°, 60°, 90°, slot and custom
• ASME BPE (for SS316L
• Low Ferrite (3%) / low Sulphur (0.005% – 0.017%)

• Food & Beverage
• Biological
• Pharmaceutics
• Similar industries
