The Stealth Excavator is designed to be deployed in areas that can not be reached by conventional barge and crane. This unit is able to be maneuvered through tight areas due to its minimal height and foot print dimensions.

5 ton pedestal crane mounted barge. 75hp dredge pump. 0-150 cubic yards/hr up to 2,000 linear feet. Pulling unit for spuds and/or anchors. Can travel anywhere within US. 2-side sections 6’ x 24’ x 2.5’ weighing 7,200lbs Center section 12’x35’x 2.5’ weighing 16,000 lbs. Opertaional Dimensions 24’ x 35’ x 2.5’.

The W.A.S.P. is designed to place stone under piers and tight areas in an controlled manner. 500 to 3,000 gpm 120 psi. 0 – 10 tons p/hr of Stone 3” in diameter. Operational Dimensions 7’x 5’X 12’. Weight 5,500 lbs.

1,100 GPM @ 300 PSI. 8’ x 4’ x 7’ x 8,000 lbs.

1,500 GPM @ 400PSI. 12’ x 4’ x7’ weighing 12,000 lbs.

3,000 GPM @400 PSI. 16’ x 5’ x 11’ weighing 15,680 lbs.

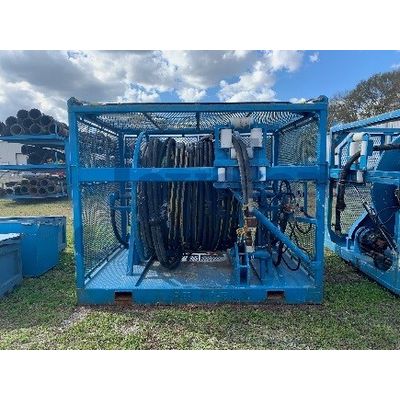

2-1.5” x 650’ @ 5,000PSI. 9.25’ x 7’ x 7.5’ x 8,160 lbs.

TO150 & TO400 Hydraulic Hose Reel: 2-2” x 650’ @ 5,000PSI, 1-1.25” x 650’ @ 5000PSI, 12.5’ x 8’ x 8’ x 15,000 lbs.

Single Jet Hose Reel: 1-4” x 400’ @400psi, 9.25’ x 7’ x 7.5’ weighing 11,340 lbs.

The Javeler “400” is currently the largest submersible dredge pump in our fleet. This hydraulic submersible moves extremely high volumes of material while maintaining the advantage of controlled discharge.
