The VF-609 is a versatile filter housing with bolted cover, designed for use with several different high performance Aquacon filter cartridges. Aquacon cartridges filter out water by chemically locking it into layers of super-absorbent media.  Water removal efficiency is not affected by surfactants or additives, and once captured, the water cannot be squeezed out.  Water capacity is as much as 1-1/2 quarts, depending on the flow rate.  These cartridges also effectively filter out dirt, rust and other particluates. As a cartridge reaches its water-holding limit, the media expands very rapidly and restricts the flow.  For fuels, the flow will completely stop, giving positive shut-off and guaranteeing water will not get downstream.  For oils and other high viscosity lquids, the pressure drop will rapidly increase, signaling the need to change cartridges.

The VF-61EP1/2 is a versatile filter housing designed for use with several different high performance Aquacon filter cartridges. Aquacon cartridges filter out water by chemically locking it into layers of super-absorbent media.  Water removal efficiency is not affected by surfactants or additives, and once captured, the water cannot be squeezed out.  Water capacity is as much as 1-1/2 quarts, depending on the flow rate.  These cartridges also effectively filter out dirt, rust and other particulates.

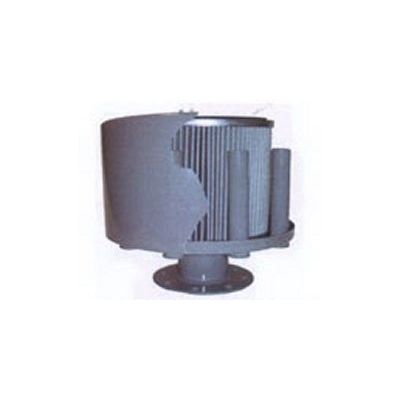

Endustra`s exclusive Venturi Outlet Design is the truly innovative design improvement in air intake housings for nearly half a century. It`s a simple design change, but is most effective in lowering initial air restriction across the element and housing of intake filters and filter silencers. Instead of having the intake air turn a sharp ninety degrees in order to flow through the outlet pipe, Endustra has created a venturi shaped outlet to smooth that transition of directional flow. In so doing, we have managed to lower the initial restriction by 20-30% in all the pipe sizes. This means lower energy requirements of your equipment to produce the same amount of work. It means longer element life between changes. It means saving money.

Purevent Breathers from Endustra are perfect wherever chemicals are stored in tanks. No electricity, water, or fuel is required for operation or this unit. This self-contained system will operate by itself without maintenance or supervision until the adsorbent media is completely exhausted. Purevent Breathers can handle tanks up to 20,000 gallons with several media types for hundreds of hazardous materials. Consider them when looking for a media that can also provide odor control.

Maximized surface area over cartridge style element in reduced space. Low Restriction improves equipment performance. Cost efficient. Increased aftermarket sales revenue with patented design. Reduced warranty return costs

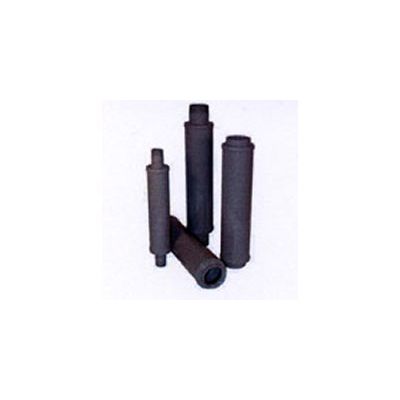

Layered sound absorbent media.  Minimal pressure drop because it does not rely on internal baffles, tubes or other restrictive devices. Reduces high frequency noise up to 30 decibels (Due to the wide range of applications and machines these units are used on, please inquire for your specification application.). Inlet or Discharge silencing applications with maximum temperature of 212 F (100 C). Durable inline carbon steel construction with baked enamel finish. For inline air service

Integrated Inlet Silencer and Filter. Shrinks Footprint. Lower Amp Draw / P. Differentiate Blower Pkg.

Our most popular model of the vacuum distillation series. Low vacuum of 26” HG is pulled on the process oil while heated and filtered. Water removal rates of more than 3 gallons per hour can be achieved in many applications and total water can be reduced to less than 100 PPM. Standard features include Variable Speed Drive controller, inlet solenoid shut off safety, wing-nut closures, liquid ring vacuum pump with chiller, DP and pressure gauges on post filter vessel, interior and exterior epoxy paint, inlet/outlet hoses, and ball valves on all ports.

Usually used in applications of Hydraulic oil that see large quantities of dirt within their process such as coal pulverizers, quench oils, or steel mill hydraulics. The dual stage allows you to reach your cleanliness levels by serial flow through 2 differently rated filter medias. Based on your particle distribution results, these filters can be specified to optimize cleanliness and reduce filter replacement frequency. Standard features include wing-nut closures, DP and pressure gauges on each filter vessel, interior and exterior epoxy paint, inlet/outlet hoses, and ball valves on all ports. Various filtration flow rates are available as is also the duplex series option for filter change-out without stopping the filtration process.

This picture shows a system using the 186 vessel which holds (3) 36” Filters. Depending on the oil being filtered, this housing will handle up to 300 GPM. We also manufacture a JB71 which holds (1) 18” filter, a JB72 which holds (1) 36” filter, and a JB183 which holds (3) 18” filters. Easy opening wing-nuts, DP and Pressure gauges, interior and exterior epoxy coating, and ball valves for each port are all standard.
