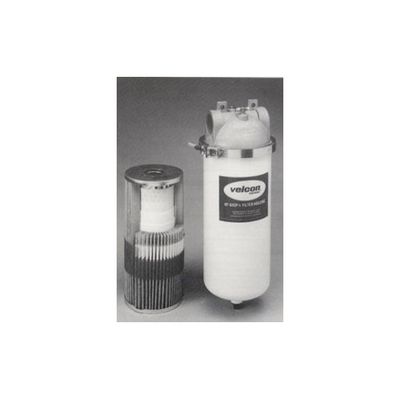

Model VF-61EP1/2 -Versatile Filter Housing
The VF-61EP1/2 is a versatile filter housing designed for use with several different high performance Aquacon filter cartridges. Aquacon cartridges filter out water by chemically locking it into layers of super-absorbent media. Water removal efficiency is not affected by surfactants or additives, and once captured, the water cannot be squeezed out. Water capacity is as much as 1-1/2 quarts, depending on the flow rate. These cartridges also effectively filter out dirt, rust and other particulates.
As a cartridge reaches its water-holding limit, the media expands very rapidly and restricts the flow. For fuels, the flow will completely stop, giving positive shut-off and guaranteeing water will not get downstream. For oils and other high viscosity liquids, the pressure drop will rapidly increase, signaling the need to change cartridges.
The VF-61EP1/2, with ACO series cartridges installed, has become the standard for low flow rate full flow aviation fuel monitor applications.
- Positive Water Removal - Aquacon cartridges remove free and emulsified water form fuels.
- Positive Water Holding - filtered water is chemically locked in and can`t be squeezed out.
- Positive Shut-Off - Saturated cartridges stop the flow of unfiltered fuels.
- Effective Dirt Removal - 98% + efficiency for 1, 5, or 25 micrometer particles
